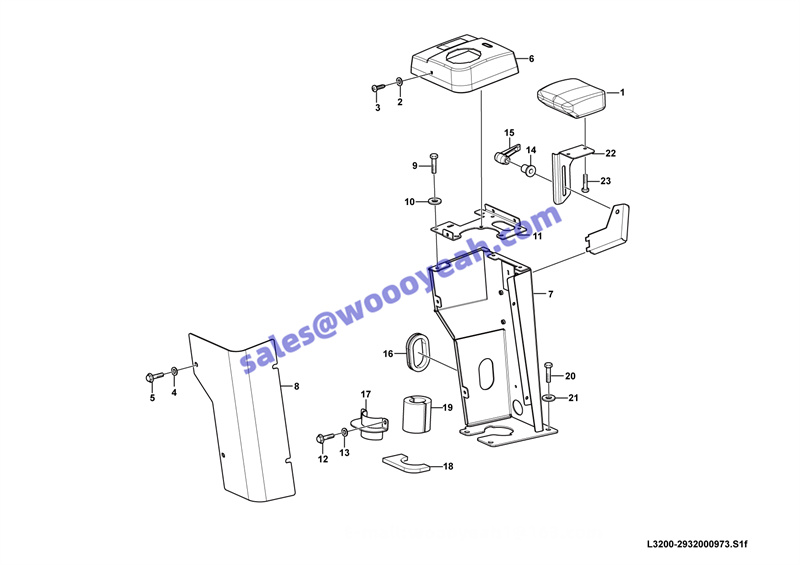

L3200-2932000973.S1f:操纵箱总成-72 control box

1 扶手 ARM REST 29320009851 Y 1
2 垫圈GB96.1-6EpZn-300HV WASHER 4015000198 GB96.1-6EpZn-300HV Y 3
3 螺钉GB818-M620EpZn-4.8 SCREW 4014000040 GB818-M620EpZn-4.8 Y 3
4 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 4
5 螺栓GB5783-M816-10.9 SCREW 4011000841 Y 4 6 上盖 COVER 29320009891 Y 1 7 操纵箱焊接总成 BOX FRAME 29320009741 Y 1 8 外板 PLATE 29320009811 Y 1 9 螺栓GB5783-M616EpZn-8.8 BOLT 4011000289 GB5783-M616EpZn-8.8 Y 3 10 垫圈GB97.1-6EpZn-300HV WASHER 4015000207 Y 5 11 顶板总成 PLATE 29320009821 Y 1 12 螺栓GB16674-M830EpZn-8.8 BOLT 4011000481 GB16674-M830EpZn-8.8 Y 2 13 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 10 14 锁紧套 LOCK WASHER 29320009921 Y 1 15 手柄JB7270.12-M1080 CONTROL HANDLE 4019000080 Y 1
16 橡胶套 RUBBER SLEEVE 26240004831 Y 1
17 管夹 CLAMP 29320010171 Y 1
18 海绵 SPONGE 29320010151 Y 1
19 海绵 SPONGE 29320010141 Y 2
20 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 4
21 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 4
22 扶手上固定板 PLATE 29320009861 Y 1
23 螺栓GB5783-M612EpZn-8.8 SCREW 4011000423 GB5783-M612EpZn-8.8 Y 2
