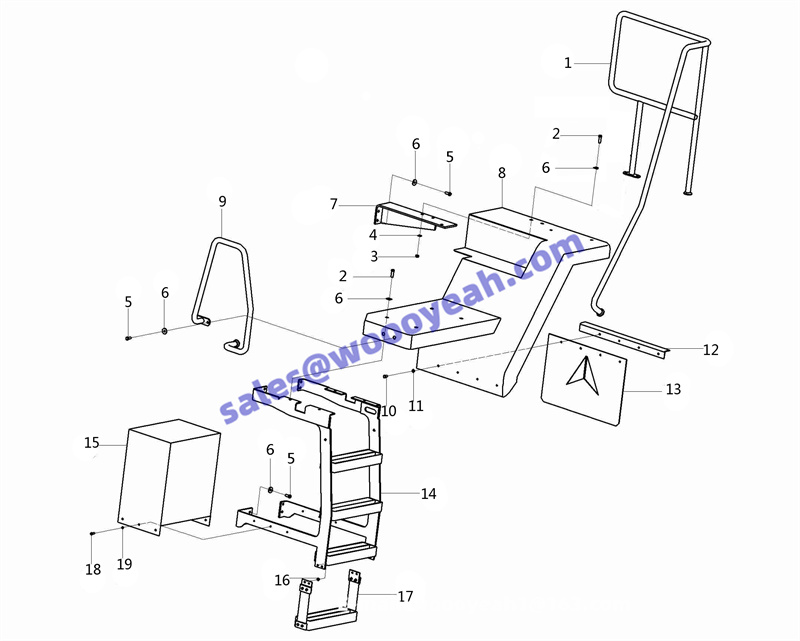

M2-2934002140:左台架总成-75 Platform assembiy

1 左护栏 BRACKET 29340021181 Y 1
2 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 7
3 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 7
4 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 7
5 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 16
6 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 23
7 左支架 BRACKET 29340019901 Y 1
8 左台架 PLATFORM 29340021201 Y 1
9 左前扶手 HAND RAIL 29340021331 Y 1
10 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 12
11 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 12
12 压板 PLATE 29340021421 Y 1
13 橡胶板 RUBBER PLATE 29340021371 Y 1
14 左梯 STEP 29340021232 Y 1
15 罩板 COVER PLATE 29340029002 Y 1
16 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 4
17 软梯 FOOT STEP 29340021151 Y 1
18 螺栓GB5783-M825EpZn-8.8 BOLT 4011000106 GB5783-M825EpZn-8.8 Y 6
19 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 6
