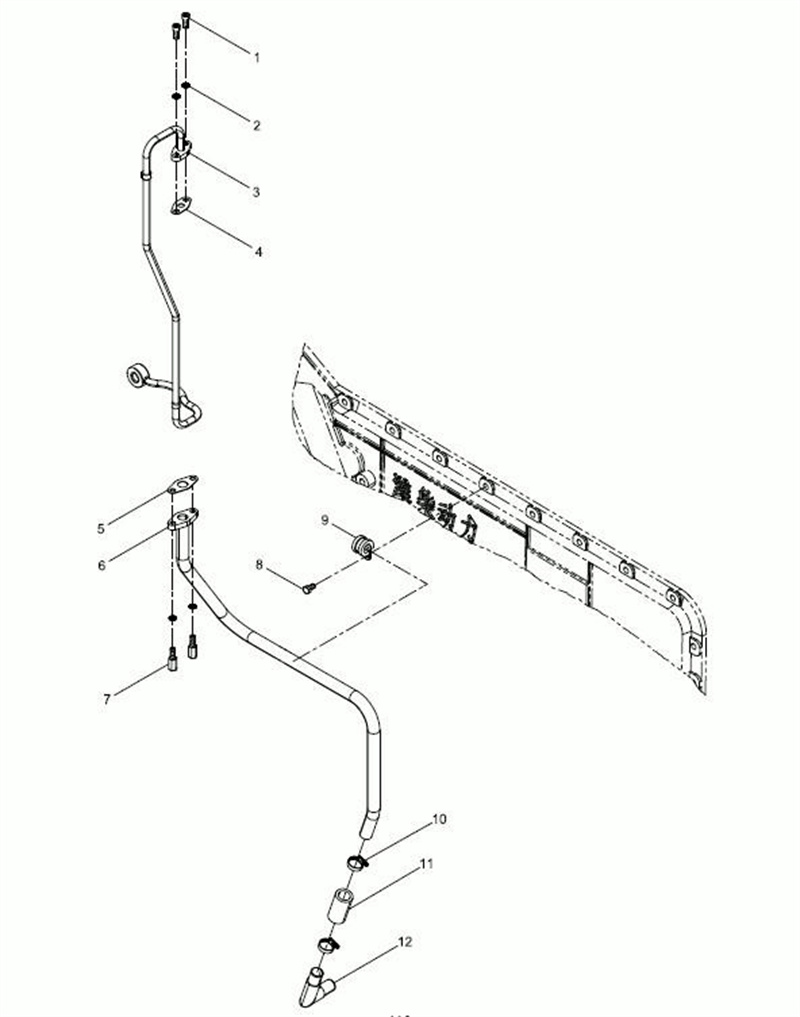

A117-4110001015:增压器润滑油管结合组-53 turbocharger lubricating pipe

1 内六角圆柱头螺钉90003862427 SCREW 4110000924079 Y 2
2 自锁垫圈188250083 WASHER 4110000556253 Y 4
3 增压器进油管612600113640 PIPE 4110000924028 612600113640 Y 1
4 进油管垫片 612600114275 GASKET 4110001592144 612600114275 Y 1
5 回油管法兰垫片61260110048 GASKET 4110000556062 Y 1
6 增压器回油管总成612600070151 PIPE 4110000556228 Y 1
7 回油管螺栓61460070014 SCREW 4110000556063 Y 2
8 六角头螺栓 90003802411 SCREW 4110001592025 90003802411 Y 1
9 单管夹子总成612600012796 CLIP 4110000924007 612600012796 Y 1
10 软管卡箍 90003989301 CLAMP 4110001592030 90003989301 Y 2
11 油路连接胶管612600112716 HOSE 4110000556229 Y 1
12 回油弯管612600070097 PIPE 4110000556064 Y 1
