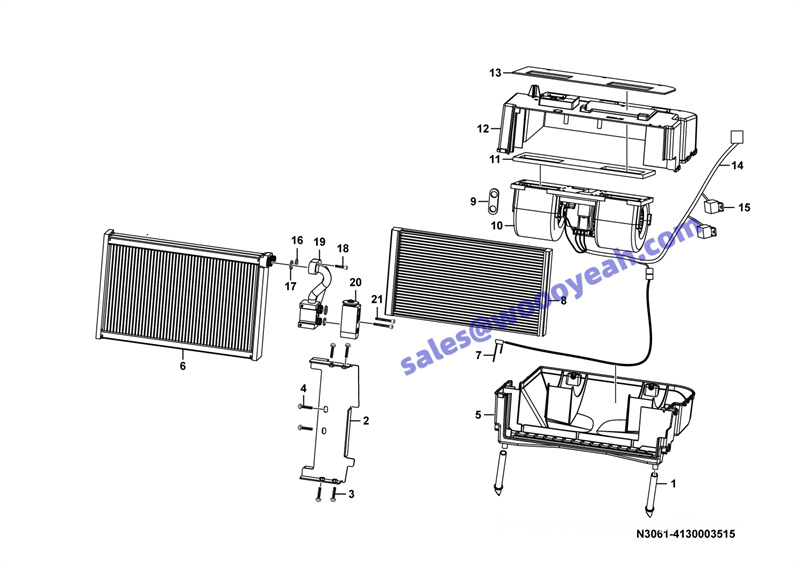

N3061-4130003515:蒸发器总成(330112)-92 Evaporator(330112)

1 排水管组件GKZ33-5.0H-80 Water pipe 4130002911001 Y 2
2 挡风板GKZ33-5.0H-60 Bracket 4130002699011 Y 1
3 十字沉头螺栓GB819-85 M516 Screw 4130002699012 Y 4 4 螺钉GB9074.8-88-M516 Screw 4130002911002 Y 2
5 下壳总成GKZ33-5.0H-40 Closure 4130002699006 Y 1
6 蒸发器芯体 CELL CORE 4190002827 Y 1
7 感温探头TB6510 Temperature sensor 4130002911003 Y 1
8 换热器芯体组件 CELL CORE 4190002826 Y 1
9 护孔圈GKZ33-5.0H-05 Casing 4130002699002 Y 1
10 蒸发风机TB5101 FAN 4130000633005 Y 1
11 密封垫GKZ33-5.0H-03 Sealing 4130002911004 Y 1
12 上壳总成GKZ33-5.0H-50 Closure 4130002699007 Y 1
13 密封垫GKZ33-5.0H-04 Sealing 4130002911005 Y 1
14 蒸发器线束GKZ33-5.0H3-10 Wiring harness 4130002904001 Y 1
15 继电器TB6301 RELAY 4130000415004
(4130000415013) Y 2
16 密封圈T0001-10.8-2.4 Sealing ring 4130002911007 Y 2
17 密封圈T0001-13.6-2.4 Sealing ring 4130002911008 Y 2
18 螺钉GB70.1-M525flZnyc-10.9-480 SCREW 4014000532 Y 2 19 过度管组件GKZ33-5.0H-10-10 Hose 4130002911009 Y 1 20 膨胀阀 EXPANSION VALVE 4190002822 Y 1 21 螺钉GB70.1-M540EpZn-8.8 SCREW 4014000397 Y 2
