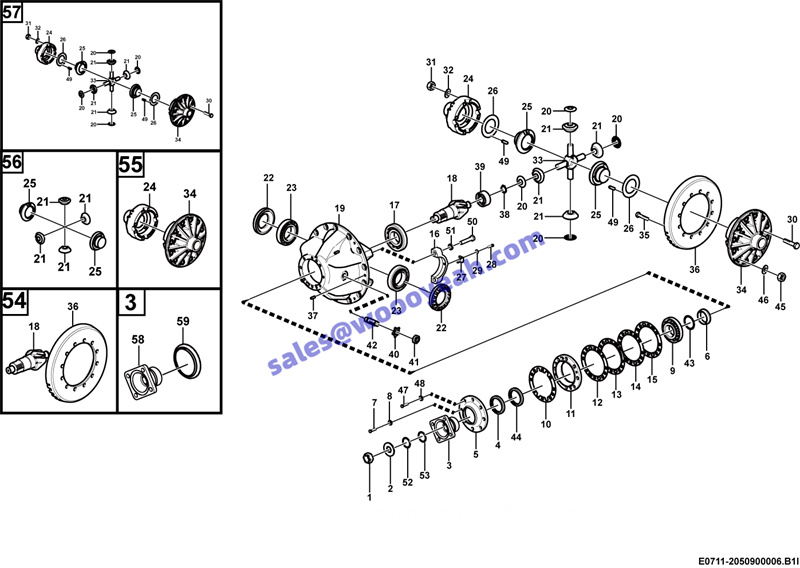

E0711-2050900006.B1l:前主传动-30 Front final drive assembly

1 螺母GB889.2-M331.5-8 LOCK NUT 4013000066 高23 Y 1 2 垫圈 WASHER 3050900007 ZL30F.5.1-1 Y 1 3 输入法兰 CONNECTION FLANGE 2050900011 ZL30F.5.1.1 Y 1 4 骨架油封HG4-692-SG709510 SEALING RING 4030000048 HG4-692-SG709510 Y 1 5 密封盖 SEALING COVER 3050900009 ZL30F.5.1-3 Y 1 6 轴套 SLEEVE 3050900012 ZL30F.5.1-6 Y 1 7 螺栓GB5782-M1455EpZn-8.8 BOLT 4011000067 GB5782-M1455EpZn-8.8 Y 7 8 垫圈GB93-14-65Mn SPRING WASHER 4015000027 GB93-14-65Mn Y 7 9 滚动轴承GB297-31310 ROLLER BEARING 4021000028 GB297-31310 Y 1 10 垫片 SHIM 3050900172 ZL30F.5.1-4 Y 1 11 轴承套 BEARING BUSHING 3050900013 ZL30F.5.1-7 Y 1 12 调整垫片 SHIM 3050900011 ZL30F.5.1-5 Y 1 13 调整垫片 SHIM 29070010611 Y 4 14 调整垫片 SHIM 29070010621 Y 3 15 调整垫片 SHIM 29070010631 Y 1 16 轴承座 BEARING SEAT 3050900023 ZL30F.5.1-17 N 2 17 滚动轴承GB297-31311 ROLLER BEARING 4021000029 GB297-31311 Y 1 18 主动螺旋伞齿轮 Crown wheel 3050900055 ZL30F.5.5-1 N 1 19 托架 CENTER HOUSING 3050900016 (7300000287) ZL30F.5.1-10 N 1 20 锥齿轮垫片 THRUST WASHER 3050900017 ZL30F.5.1-11 Y 4 21 锥齿轮 DIFFERENTIAL PINION 3050900018 ZL30F.5.1-12 Y 4 22 调整螺母 NUT 3050900019 ZL30F.5.1-13 Y 2 23 滚动轴承GB297-32215 ROLLER BEARING 4021000035 GB297-32215 Y 2 24 差速器左壳 Differential housing 3050900020 ZL30F.5.1-14 N 1 25 半轴齿轮 DIFFERENTIAL SIDE GEAR 3050900021 ZL30F.5.1-15 Y 2 26 半轴齿轮垫片 SHIM 3050900022 ZL30F.5.1-16 Y 2 27 锁紧片 LOCK WASHER 3050900024 ZL30F.5.1-18 Y 2 28 螺栓GB5786-M10120EpZn-8.8 BOLT 4011000597 GB5786-M10120-Ep.Zn-8.8 Y 2 29 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn Y 2 30 螺栓 SCREW 29090007951 Y 8 31 螺母GB6176-M141.5-10 NUT 4013000197 Y 8
32 垫圈 WASHER 29090007961 Y 8
33 十字轴 SPIDER 3050900026 ZL30F.5.1-20 Y 1
34 差速器右壳 Differential housing 3050900027 ZL30F.5.1-21 N 1
35 螺栓 BOLT 29070010851 Y 12
36 大螺旋伞齿轮 Crown wheel 3050900056 ZL30F.5.5-2 N 1
37 销GB119.2-10u830 PIN 4016000124 GB119.2-10u830 Y 1
38 挡圈GB894.1-30-65Mn RETAINING RING 4015000019 GB894.1-30-65Mn Y 1 ¥
39 滚动轴承GB283-NUP2306 ROLLER BEARING 4021000026 GB283-NUP2306 Y 1
40 锁紧片 LOCK WASHER 29070000311 ZL50.5.1-8 Y 1
41 螺母GB6173-M272-05 NUT 4013000052 GB6173-M272-05 Y 1
42 止推螺栓 SCREW 29070000301 ZL50.5.1.2 N 1
43 垫片 SHIM 3050900030 ZL30F.5.1-24 Y 2
44 密封圈GB13871.1-FB070095-F SEALING RING 4030000768 Y 1
45 螺母GB6176-M161.5-10 NUT 4013000198 Y 12 ¥1.1 46 垫圈 WASHER 29070009511 Y 12 47 螺栓GB5782-M1255EpZn-8.8 BOLT 4011000186 GB5782-M12*55EpZn-8.8 Y 1
48 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 1
49 固定销 PIN 29070000461 ZL50.5.1-26 Y 4
50 螺栓 SCREW 29090007971 Y 4
51 垫圈 WASHER 29070001301 Y 4
52 0型密封圈 O-RING 3050900008 ZL30F.5.1-2 Y 1
53 挡圈 WASHER 3050900032 ZL30F.5.1-26 Y 1
54 前螺旋伞齿轮 CROWN WHEEL 3050900201 ZL30F.5.5-1/2 Y 1
55 差速器左右壳 DIFFERENTIAL HOUSING 3050900199 ZL30F.5.1-14/21A Y 1
56 锥齿半齿总成 GEAR KIT 21909006441 Y 1
57 差速器总成-临工 DIFFERENTIAL 7200000118 P05-3119 Y 1
58 法兰 CONNECTION FLANGE 3050900057 ZL30F.5.1.1-1 Y 1
59 防尘圈 SEALING RING 3050900058 ZL30F.5.1.1-2 Y 1
