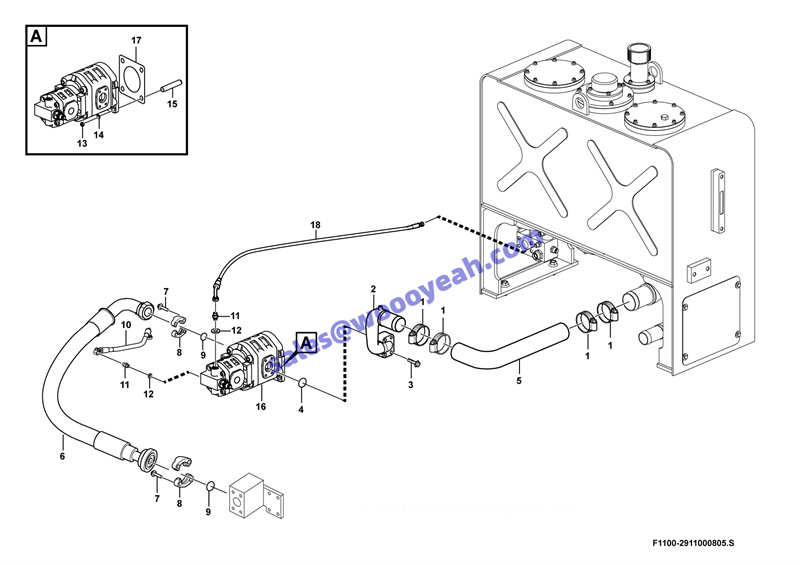

F1100-2911000805.S:工作泵系统-37 Hydraulic pump system

1 喉箍JB8870-d90 CLAMP 4017000013 JB8870-d90 Y 4
2 工作泵吸油钢管 PIPE 29110004021 Y 1
3 螺栓GB16674-M1260EpZn-8.8 BOLT 4011000337 GB16674-M1260EpZn-8.8 Y 4
4 O形圈GB3452.1-43.73.55G O-RING 4030000235 GB3452.1-43.73.55G Y 1
5 工作泵吸油胶管 HOSE 29110004031 Y 1
6 工作泵出油胶管 HOSE ASSEMBLY 29110004041 Y 1
7 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 8
8 分体法兰LGB117-312550 FLANGE HALF 4041000056 Y 2
9 O形圈GB3452.1-37.53.55G O-RING 4030000029 (4041000878) GB3452.1-37.53.55G Y 2
10 软管LGB165-004070 HOSE ASSEMBLY 4041000646 Y 1
11 直通接头 NIPPLE 29120009921 Y 2
12 垫圈JB1002-14-T2 WASHER 4030000057 JB1002-14-T2 Y 2
13 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 4
14 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 4
15 螺柱GB898-M1235EpZn-8.8 STUD 4012000003 GB898-M1235EpZn-8.8 Y 4
16 双联泵CBGj3100/1010-XF GEAR PUMP 4120001058 Y 1
17 泵用密封垫 GASKET 29110000042
(29110000043) N 1
18 软管LGB165-004130 HOSE ASSEMBLY 4041000645 Y 1
