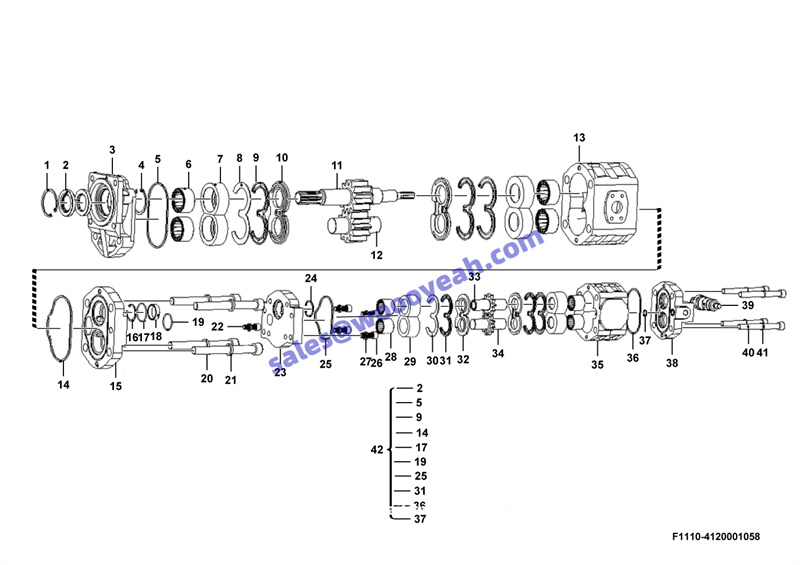

F1110-4120001058:工作液压泵总成(370142)-38 Working hydraulic pump assembly(370142)

1 挡圈41060100400 RETAINING RING 4120001715001 Y 1
2 旋转轴唇形密封圈 43020200200 SEALING RING 4120001715002 Y 2
3 前盖21050200110 COVER 4120001715004 Y 1
4 挡圈41060100300 RETAINING RING 4120001715003 Y 1
5 环形密封圈44020100700 SEALING RING 4120005081002 Y 1
6 滚针轴承 42010100200 NEEDLE BEARING 4120001715006
(4120000903001) Y 4
7 定位套21050900110 SPACER SLEEVE 4120001715007 Y 4
8 耳形挡片21050800110 RETAINING RING 4120001715008 Y 2
9 耳形密封垫21050700010 Sealing washer 4120005666001 N 2
10 侧板21050600110 SIDE BOARD 4120001715010 Y 2
11 主动齿轮轴ⅠHGP3100矩21081012010 Drive shaft 4120001058207 Y 1
12 从动齿轮轴21050412010 SHAFT 4120000903043 Y 1
13 泵体21081712010 PUMP BODY 4120001059002 Y 1
14 环形密封圈 44020100800 SEALING RING 4120005081005 Y 1
15 中间体ⅠHGP3/1左旋21081300210 Centering block 4120001058208 Y 1
16 挡圈41060100700 RETAINING RING 4120005081007 Y 1
17 O形密封圈43010102600 O-RING 4120005081008 Y 1
18 连接套21081600110 ENGAGING SLEEVE 4120005081009 Y 1
19 O形圈43010102500 O-RING 4120005081010 Y 1
20 螺钉44010102580 SCREW 4120000903045 Y 4
21 弹簧垫圈41050200700 SPRING WASHER 4120001715016 Y 4
22 螺钉41010102680 SCREW 4120005081011 N 1
23 中间体ⅡHGP3/1左旋21081400210 Centering block 4120001058209 Y 1
24 挡圈41060100600 RETAINING RING 4120000171059 Y 1
25 环形密封圈 44020100200 SEALING RING 4120000171060 Y 1
26 螺钉41010101780 SCREW 4120001715017 Y 4
27 弹簧垫圈41050200500 SPRING WASHER 4120001715018 Y 4
28 滚针轴承42010100300 NEEDLE BEARING 4120000171061 Y 4
29 定位套21010900110 SPACER SLEEVE 4120000171062 Y 4
30 耳形挡片21010800110 RETAINING RING 4120000171063 Y 2
31 耳形密封垫21010700110 SEALING WASHER 4120000171064 Y 2
32 侧板21010600110 SIDE BOARD 4120000171065 Y 2
33 主动齿轮轴21061101010 DRIVE SHAFT 4120000171066 Y 1
34 从动齿轮轴21010401010 SHAFT 4120000171067 Y 1
35 泵体21071801010 PUMP BODY 4120000171068 Y 1
36 环形密封圈 44020100100 SEALING RING 4120005081016 Y 1
37 O形圈43010102400 O-RING 4120000171069 Y 1
38 后盖21070500110 COVER 4120000171070 Y 1
39 直动式溢流阀46000000100 VALVE 4120000171071 Y 1
40 螺钉44010100180 SCREW 4120000171072 Y 4
41 弹簧垫圈41050200800 SPRING WASHER 4120000171073 Y 5
42 密封件包 SEALING RING KIT 4120005666007 N 1
