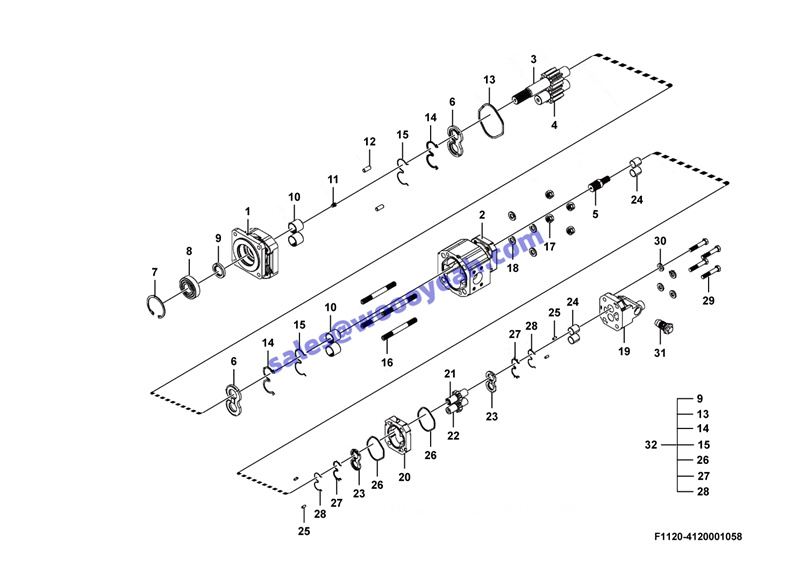

F1120-4120001058:工作泵总成(120104)-39 Working hydraulic pump assembly(120104)

1 前盖163A008T Cover 4120001058201 N 1
2 E类泵体163E324T Pump body 4120001058202 N 1
3 一级主齿163F074T Drive shaft 4120001058203 Y 1
4 一级从齿163G027T Shaft 4120005081203 N 1
5 接轴163H004T Shaft 4120005081204 N 1
6 侧板163J002T Side board 4120005082209 N 2
7 孔用弹性挡圈565C-00016 Retaining ring 4120005082210 N 1
8 外置轴承W58-48 Beaing 4120005082211 N 1
9 油封W62-26-10 SEALING RING 4120001058204 Y 1
10 滑动轴承002B005T Plain bearing 4120005082213 N 4
11 堵油螺钉S-0280 Screw 4120005082214 N 1
12 圆柱销008A0006 Pin 4120005082215 N 2
13 O型密封圈001E0006 O-ring 4120005082216 N 1
14 E型密封圈006E003T Sealing ring 4120005082217 N 2
15 E型挡圈007E002T Retaining ring 4120005082218 N 2
16 双头螺柱002A0017 Stud 4120001058205 N 4
17 螺母004A0004 Nut 4120005082220 N 4
18 垫圈W033-2 Washer 4120005082221 N 4
19 后盖592C-L0015-2063 Cover 4120004423218 N 1
20 二级泵体577-01109-05 Pump body 4120004423219 N 1
21 二级主齿996C-L0039-05DR Drive shaft 4120004423220 N 1
22 二级从齿996-01103-05ID Shaft 4120004423221 N 1
23 侧板947-01105 Side board 4120005081210 N 2
24 滑动轴承921-01108 Plain bearing 4120005081211 N 4
25 圆柱销280-1971-071 Pin 4120005081212 N 4
26 方型密封圈TA-2995-152 Sealing ring 4120005081213 N 2
27 Ｅ型密封圈947-01107 Sealing ring 4120005081214 N 2
28 Ｅ型挡圈947-01106 Retaining ring 4120005081215 N 2
29 螺栓W1-88 Screw 4120004423222 N 4
30 垫圈W033-1 Washer 4120005081217 N 4
31 溢流阀5514C-00001-035 Valve 4120004423223 Y 1
32 密封件包 SEALING RING KIT 4120001058206 Y 1
