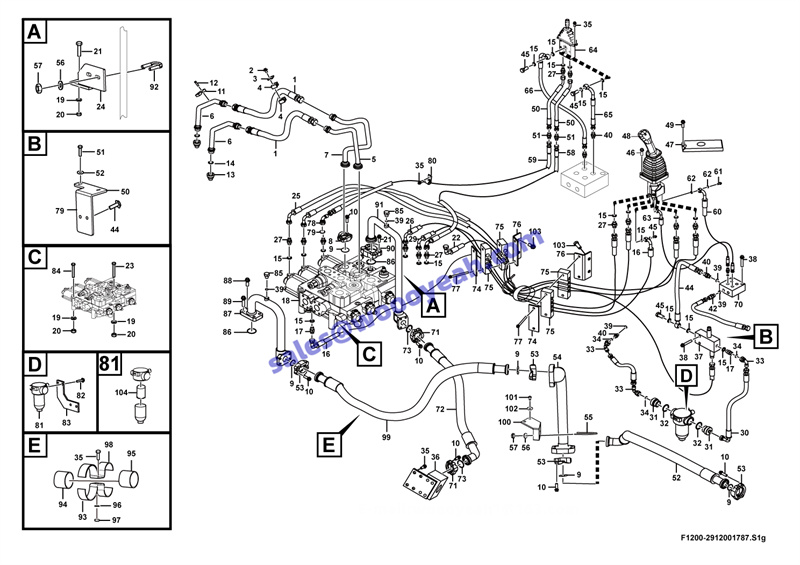

F1200-2912001787.S1g:液压操纵系统-40 Hydraulic control system

1 软管LGB127-012160 HOSE ASSEMBLY 4041000719 Y 2
2 螺栓GB16674-M850EpZn-8.8 BOLT 4011000172 GB16674-M850EpZn-8.8 Y 4
3 压板 PLATE 29120011591 Y 2
4 橡胶管夹 CLAMP 29120011601 Y 4
5 辅助联左钢管 PIPE 29120011561 Y 1
6 钢管 PIPE 29120017901 Y 2
7 辅助联右钢管 PIPE 29120011571 Y 1
8 分体法兰LGB117-312551 FLANGE HALF 4041000027 Y 2
9 O形圈GB3452.1-37.53.55G O-RING 4030000029 (4041000878) GB3452.1-37.53.55G Y 6
10 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 32
11 压板 PLATE 29120010811 Y 4
12 螺栓GB16674-M835EpZn-8.8 BOLT 4011000161 GB16674-M835EpZn-8.8 Y 8
13 堵塞LGB142-03016 PLUG 4041000680 Y 2
14 O形圈GB3452.1-20.01.80G O-RING 4030000241 GB3452.1-201.80G Y 2
15 垫圈 WASHER 29120014931 Y 24
16 先导胶管（2c） HOSE ASSEMBLY 29120016301 Y 1
17 接头 NIPPLE 29120007651 Y 2
18 多路阀D32A-16 CONTROL VALVE 4120001054 Y 1
19 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 5
20 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 5
21 螺栓GB16674-M1235EpZn-8.8 BOLT 4011000477 GB16674-M1235EpZn-8.8 Y 6
22 软管LGB128-004250 HOSE ASSEMBLY 4041001061 Y 1
23 螺栓GB5782-M12165EpZn-8.8 BOLT 4011000057 GB5782-M12165EpZn-8.8 Y 2
24 固定支架 BRACKET 29120011391 Y 1
25 先导胶管（2B-a2-A2） HOSE ASSEMBLY 29120016311 Y 1
26 先导胶管（2A-b2-B2） HOSE ASSEMBLY 29120016321 Y 1
27 接头 NIPPLE 29120015401 Y 12
28 先导胶管（1B-a1-A1） HOSE ASSEMBLY 29120016331 Y 1
29 先导胶管（1A-b1-B1） HOSE ASSEMBLY 29120016341 Y 1
30 软管LGB125-004065 HOSE ASSEMBLY 4041000576 Y 1
31 接头 NIPPLE 29120015081 Y 2
32 O形圈GB3452.1-32.52.65G O-RING 4030000276 GB3452.1-32.52.65G Y 2
33 组合接头LGB143-01608 NIPPLE 4041001023 Y 3
34 O形圈GB3452.1-8.001.80G O-RING 4030000240 GB3452.1-81.8G Y 3
35 螺栓GB16674-M820EpZn-8.8 BOLT 4011000458 GB16674-M820EpZn-8.8 Y 10
36 二通块 VALVE BLOCK 29120004041 Y 1
37 压力选择阀SF8-D VALVE 4120005063 Y 1
38 螺栓GB16674-M1055EpZn-8.8 BOLT 4011000473 GB16674-M1055EpZn-8.8 Y 4
39 O形圈LGB168-11124 O-RING 4041000767 Y 9
40 直接头LGB120-01614 NIPPLE 4041000604 Y 5
41 软管LGB124-004080 HOSE ASSEMBLY 4041000613 Y 1
42 直接头LGB120-01814 NIPPLE 4041000150 Y 2
43 过渡块回油管 HOSE ASSEMBLY 29120010801 Y 1
44 选择阀回油管 HOSE ASSEMBLY 29120011471 Y 1
45 螺栓JB999-M141.532EpZn-35 BOLT 4011000344 JB999-M141.532-35 Y 5
46 螺栓GB16674-M1016EpZn-8.8 BOLT 4011000488 GB16674-M1016EpZn-8.8 Y 3
47 操纵箱盖PS COVER 29120015911 Y 1
48 先导阀总成DXS-00 CONTROL LEVER 4120002027 Y 1
49 螺钉GB70.1-M620EpZn-8.8 SCREW 4014000058 GB70.1-M620EpZn-8.8 Y 6
50 软管LGB124-003058 HOSE ASSEMBLY 4041001202 Y 2
51 直接头 NIPPLE 29120017721 Y 2
52 软管LGB162-012105 HOSE ASSEMBLY 4041000532 Y 1
53 分体法兰LGB117-312550 FLANGE HALF 4041000056 Y 4
54 回油钢管 PIPE 29120019351 Y 1
55 U形螺栓JB/ZQ4321-33Zn-Q235A.F U-BOLT 4011000556 JB/ZQ4321-33Zn-Q235A.F Y 2
56 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 6
57 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 6
58 软管LGB124-003235 HOSE ASSEMBLY 4041001448 Y 1
59 软管LGB125-003280 HOSE ASSEMBLY 4041001435 Y 1
60 先导阀回油胶管 HOSE ASSEMBLY 29120016291 Y 1
61 螺栓JB999-M181.540EpZn-35 BOLT 4011000366 JB999-M181.540-35 Y 1
62 垫圈 WASHER 29120015221 Y 2
63 前部先导油管（a3） HOSE ASSEMBLY 29120010841 Y 1
64 先导阀总成2TH6L-01 CONTROL LEVER 4120001966 Y 1
65 前部先导油管（b2） HOSE ASSEMBLY 29120010851 Y 1
66 先导阀回油管 HOSE ASSEMBLY 29120010331 Y 1
67 固定板 ANCHOR PLATE 29120010771 Y 1
68 螺栓GB5783-M820EpZn-8.8 BOLT 4011000105 Y 2 69 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 2 70 过渡块 BLOCK 29120010791 Y 1 71 分体法兰LGB117-310490 FLANGE HALF 4041000043 Y 2 72 软管LGB107-010098 HOSE ASSEMBLY 4041000731 Y 1 73 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 2 74 固定板 ANCHOR PLATE 29120016351 Y 2 75 管夹 CLAMP 29120016741 Y 4 76 固定板 ANCHOR PLATE 29120016951 Y 2 77 螺栓GB16674-M890EpZn-8.8 BOLT 4011000493 GB16674-M890EpZn-8.8 Y 4 78 组合接头LGB143-01406 NIPPLE 4041001047 Y 1 79 O形圈GB3452.1-6.001.80G O-RING 4030000530 Y 1
80 管夹 CLAMP 29120007671 Y 2
81 滤油器PLF-C3010 HYDRAULIC FLUID FILTER 4120001954 Y 1 82 螺栓GB16674-M1020EpZn-8.8 BOLT 4011000447 GB16674-M1020EpZn-8.8 Y 4 83 固定板 ANCHOR PLATE 29120016021 Y 1 84 螺栓GB5782-M12145EpZn-8.8 BOLT 4011000056 GB5782-M12145EpZn-8.8 Y 1 85 螺塞LGB135-01422 PLUG 4041000774 Y 2 86 O形圈GB3452.1-47.53.55G O-RING 4030000130 GB3452.1-47.53.55G Y 2 87 多路阀回油钢管 PIPE 29120016541 Y 1 88 螺栓GB16674-M1255EpZn-8.8 BOLT 4011000478 GB16674-M1255EpZn-8.8 Y 2 89 螺栓GB16674-M1265EpZn-8.8 SCREW 4011000793 Y 2
90 分体法兰LGB117-314651 FLANGE HALF 4041000010 Y 1
91 多路阀进油钢管 PIPE 29120010691 Y 1
92 U形螺栓LGB159-03040 U-BOLT 4041000958 Y 1
93 管夹 CLAMP 29120015431 Y 2
94 缓冲套LGB123-0219 RUBBER SLEEVE 4041001188 Y 2
95 缓冲套LGB123-0740 RUBBER SLEEVE 4041000869 Y 2
96 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 2
97 螺母GB6170-M8EpZn-8 NUT 4013000033 Y 2
98 管夹 CLAMP 29120015711 Y 2
99 软管LGB163-012106 HOSE ASSEMBLY 4041001301 Y 1
100 固定板 ANCHOR PLATE 29120019271 Y 1
101 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 2
102 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 2
103 螺栓GB16674-M1225EpZn-8.8 BOLT 4011000560 GB16674-M1225EpZn-8.8 Y 4
104 滤芯（先导滤清器滤芯)PLFX-30X10 FILTER INSERT 4120001954001 Y 1
