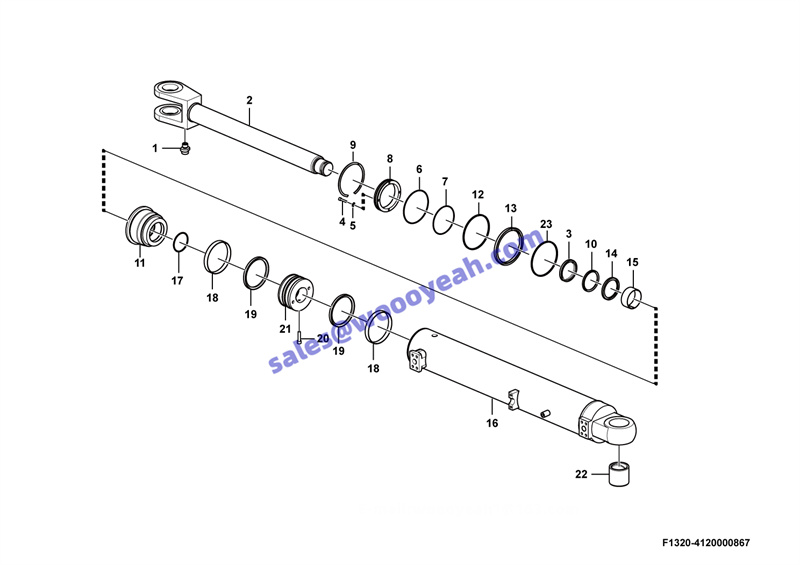

F1320-4120000867:动臂油缸(371368)-45 Lifting cylinder assembly(371368)

1 丝座HSGF-125/70771-1 SEAT 4120000867102 N 1 2 活塞杆HSGF-125/70771-2 PISTON ROD 4120000867103 N 1
3 密封件包 SEALING RING KIT 4120000867101 Y 1
4 螺钉GB70.1-M630EpZn-10.9 SCREW 4014000153 Y 4 5 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 4 6 密封件包 SEALING RING KIT 4120000867101 Y 1 7 密封件包 SEALING RING KIT 4120000867101 Y 1 8 挡环 HSGK-125/70771-3 RETAINING RING 4120000867118 Y 1
9 钢丝挡圈HSGK-125/70771-8 D125 Retaining ring 4120000867119 N 1 10 密封件包 SEALING RING KIT 4120000867101 Y 1 11 缸盖HSGF-125/70771-4 GUIDE RING 4120000867105 N 1
12 密封件包 SEALING RING KIT 4120000867101 Y 2
13 密封件包 SEALING RING KIT 4120000867101 Y 1
14 密封件包 SEALING RING KIT 4120000867101 Y 1
15 密封件包 SEALING RING KIT 4120000867101 Y 2
16 缸体HSGF-125/70771A-1 CYLINDER TUBE 4120000867108 N 1 17 密封件包 SEALING RING KIT 4120000867101 Y 1 18 密封件包 SEALING RING KIT 4120000867101 Y 2 19 密封件包 SEALING RING KIT 4120000867101 Y 2 20 螺钉GB78-M1230-33H SCREW 4014000485 Y 1
21 活塞HSGF-125/70771-6（定位孔12） PISTON 4120000867111 Y 1 22 衬套 HSGK-125/70771-7 BUSHING 4120000867121
(4120000867043) N 1
23 密封件包 SEALING RING KIT 4120000867101 Y 1
