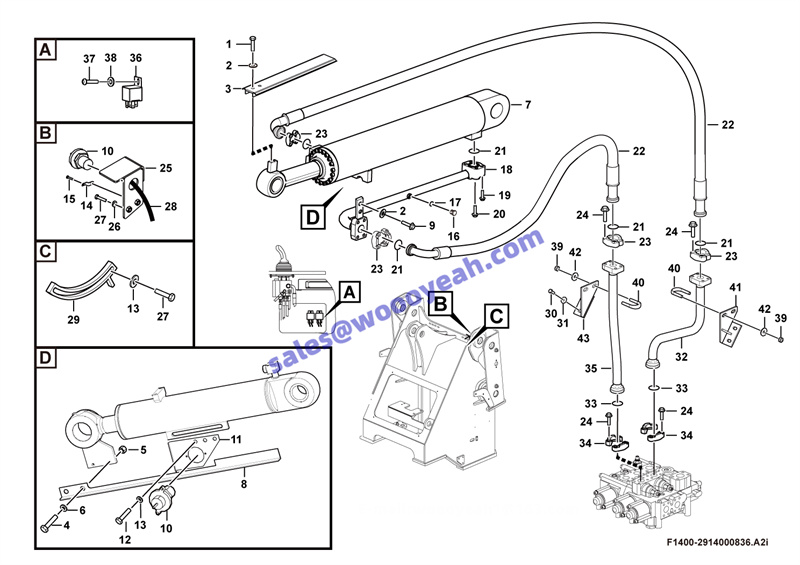

F1400-2914000836.A2i:转斗油缸系统-46 Tilt cylinder system

1 螺栓GB5783-M1020EpZn-8.8 BOLT 4011000081 GB5783-M1020EpZn-8.8 Y 2
2 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 4
3 放平护板 INDICATOR PLATE 29140009881 Y 1
4 螺栓GB16674-M1435EpZn-8.8 BOLT 4011000145 GB16674-M1435EpZn-8.8 Y 2
5 螺母GB6170-M14EpZn-8 NUT 4013000013 GB6170-M14EpZn-8 Y 2
6 垫圈GB97.1-14EpZn-300HV WASHER 4015000177 GB97.1-14EpZn-300HV Y 2
7 转斗油缸HSGF-14080502-952P TILT CYLINDER 4120001083 Y 1
8 转斗指示板 INDICATOR PLATE 29140011711 N 1
9 螺栓GB5783-M1016EpZn-8.8 BOLT 4011000080 Y 2 10 接近开关J7-D10B1/DC POSITION SWITCH 4130001028 Y 2 11 接近开关支架 BRACKET 29140013891 Y 1 12 螺栓GB5783-M1230EpZn-8.8 BOLT 4011000089 Y 2
13 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 4
14 CLIP 1027-003-1200 CLIP 4130001006 Y 2
15 螺栓GB16674-M816EpZn-8.8 BOLT 4011000461 GB16674-M816EpZn-8.8 Y 2
16 螺塞LGB135-01422 PLUG 4041000774 Y 1
17 O形圈LGB168-11124 O-RING 4041000767 Y 1
18 转斗缸大腔钢管 PIPE 29140008441 Y 1
19 螺栓GB16674-M1050EpZn-8.8 BOLT 4011000309 GB16674-M1050EpZn-8.8 Y 2
20 螺栓GB16674-M1055EpZn-8.8 BOLT 4011000473 GB16674-M1055EpZn-8.8 Y 2
21 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 5
22 软管LGB106-010120 HOSE ASSEMBLY 4041000703 Y 2
23 分体法兰LGB117-310490 FLANGE HALF 4041000043 Y 4
24 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 24
25 接近开关支架 BRACKET 29140013911 Y 1
26 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 2
27 螺栓GB5783-M1220EpZn-8.8 SCREW 4011000087 GB5783-M1220EpZn-8.8 Y 4
28 接近开关转换线束 WIRING HARNESS 29410000121 Y 1
29 动臂指示板 INDICATOR PLATE 29140007551 Y 1
30 螺栓GB5783-M820EpZn-8.8 BOLT 4011000105 Y 4 31 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 4 32 转斗联小腔钢管 PIPE 29140008401 Y 1 33 O形圈GB3452.1-37.53.55G O-RING 4030000029
(4041000878) GB3452.1-37.53.55G Y 2 34 分体法兰LGB117-312551 FLANGE HALF 4041000027 Y 2 35 转斗联大腔钢管 PIPE 29140008411 Y 1 36 中间继电器024-1Z6GD2 RELAY 4130000869 Y 2 37 螺钉GB818-M512EpZn-4.8 SCREW 4014000048 GB818-M5*12EpZn-4.8 Y 2
38 垫圈GB97.1-5EpZn-300HV WASHER 4015000110 GB97.1-5EpZn-300HV Y 2
39 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 4
40 U形螺栓LGB159-03040 U-BOLT 4041000958 Y 2
41 固定支架A BRACKET 29140004061 Y 1
42 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 4
43 固定支架B BRACKET 29140004071 Y 1
