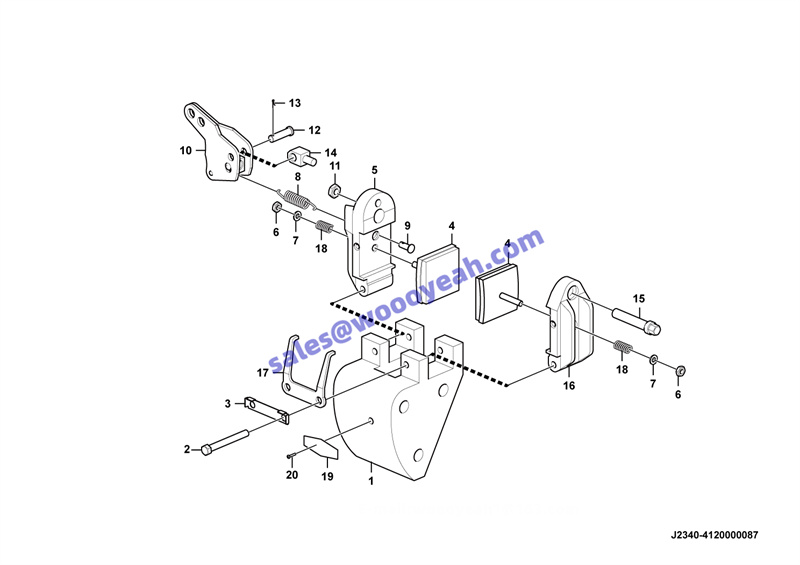

J2340-4120000087:手制动器（371328）-66 parking brake, hand-op.(371328)

1 固定座JS-50Z-001 housing 4120000087102 N 1
2 锁紧螺栓JS-50Z-002 SCREW 4120000087103 Y 2
3 锁片JS-50Z-003 WASHER 4120000087104 Y 1
4 制动片JS-50Z-004 BRAKE PLATE 4120000087105
(4120000087010) N 2
5 左钳体JS-50Z-005 BRAKE CALIPER 4120000087106 N 1
6 锁紧螺母M6 NUT 4120000087107 Y 2
7 垫片6 WASHER 4120000087108 Y 2
8 拉簧JS-50Z-006 SPRING 4120000087101 Y 1
9 拉簧销JS-50Z-007 PIN 4120000087109 Y 1
10 操纵手柄JS-50Z-008 CONTROL HANDLE 4120000087110 Y 1
11 锁紧螺母M10 NUT 4120000087111 Y 1 ¥
12 销轴∮8 PIN 4120000087112 Y 1
13 开口销2.5 PIN 4120000087113 Y 1
14 定位支块JS-50Z-009 BLOCK 4120000087114 Y 1
15 螺栓JS-50Z-010 SCREW 4120000087115 Y 1
16 右钳体JS-50Z-011 BRAKE CALIPER 4120000087116 Y 1
17 复位弹簧板JS-50Z-012 PLATE 4120000087117 Y 1
18 弹簧JS-50Z-013 SPRING 4120000087118 Y 2
19 商标铭牌JS-50Z-014 NAME PLATE 4120000087119 N 1
20 扁平头铆钉2.8×6.3 RIVET 4120000087120 Y 1
