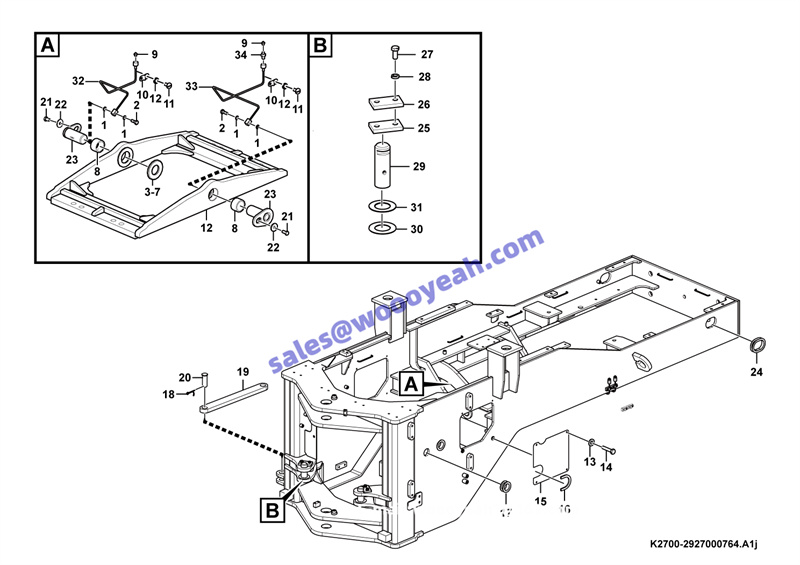

K2700-2927000764.A1j:后车架附件-72 Rear frame system

1 垫片 SHIM 29250000301 Y 4
2 通油螺栓 BOLT 29250000291 Y 2
3 调整垫片 SHIM 29270009321 Y 2
4 调整垫片 SHIM 29270009311 Y 2
5 调整垫片 SHIM 29270001071 Y 2
6 调整垫片 SHIM 29270001061 Y 2
7 调整垫片 SHIM 29270001051 ZL50F.11-12 Y 2
8 套 BUSHING 29270007831 ZL30F.11-8 Y 2
9 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 4 10 管夹 CLAMP 29250000311 Y 2 11 螺钉GB818-M610EpZn-4.8 SCREW 4014000024 Y 4
12 副车架 REAR AXLE BRIDGE 29270007841 ZL30F.11.3 Y 1
13 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 4
14 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 8
15 螺栓GB5783-M816EpZn-8.8 BOLT 4011000102 GB5783-M816EpZn-8.8 Y 8
16 盖板 COVER PLATE 29270008551 Y 2
17 橡胶套 RUBBER SLEEVE 29270007792 Y 2
18 走线胶套 RUBBER SLEEVE 29270007551 936.11-1 Y 2
19 开口销GB91-6.350EpZn-Q235A SPLIT PIN 4016000040 GB91-6.350EpZn-Q235A Y 2
20 锁定杆 TRANSPORT LOCK 29270008891 Y 1
21 销轴GB882-B3080EpZn-35 CLEVIS PIN 4016000222 Y 2 22 螺栓GB5783-M1220EpZn-8.8 SCREW 4011000087 GB5783-M1220EpZn-8.8 Y 2 23 垫圈LGB001-12 WASHER 4040000001 LGB001-12 Y 2 24 焊接销轴 PIN 29270008591 Y 2 25 走线胶套 RUBBER SLEEVE 29270009101 Y 2 26 卡板 PLATE 29250001121 Y 2 27 卡板 PLATE 29250001111 Y 2 28 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 4 29 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 4 30 后转向销 PIN 29270007971 ZL30F.11-1 Y 2 31 垫片LGB303-40702 SHIM 4043000325 Y 4 32 垫片LGB303-40701 SHIM 4043000064 LGB303-4070*1 Y 4
33 后输油管 LUBRICATING PIPE 29270007751 Y 1
34 前输油管 LUBRICATING PIPE 29270007771 N 1
