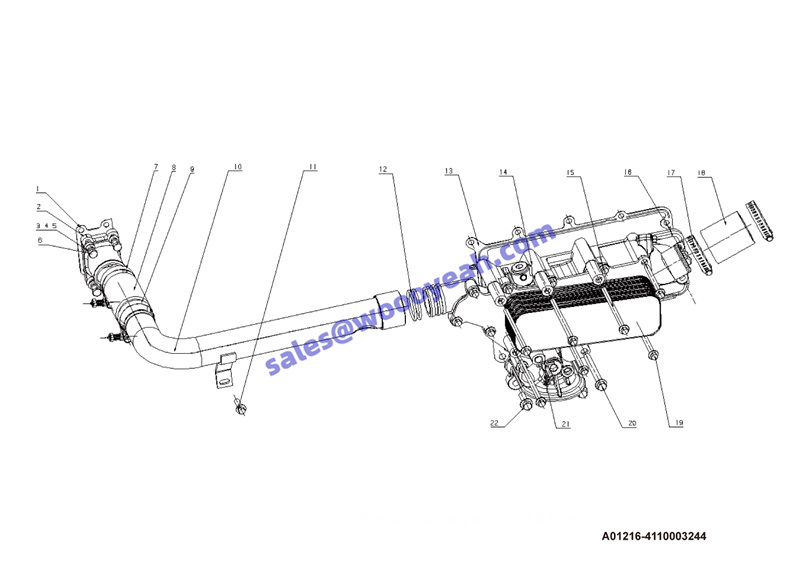

A01216-4110003244:机油冷却器总成-16 Oil cooler assembly

1 进水接头垫片J4000-1013008 GASKET 4110001058058 Y 1
2 离合器壳进水接头J4000-1013007 NIPPLE 4110001058057 Y 1
3 垫圈6105Q-3509013 WASHER 4110000560078 6105Q-3509013 Y 1
4 垫圈 8 Q40108 01132562 WASHER 4110000560297 Q40108 Y 13
5 垫圈Q40308 01137981 WASHER 4110000560304 Y 13
6 螺栓 M8X30 Q150B0830 SCREW 4110000560259 Q150B0830 Y 4
7 环箍66 Q/YC147.1-66 CLAMP 4110001058076 Y 1
8 胶管3430-1013017C HOSE 4110001058008 Y 1
9 环箍61Q/YC147.1-61 Clamp 4110003445087 Y 1
10 出水管焊接组件J8000-1013040 PIPE 4110001058064 N 1
11 螺栓M8X28 Q1840828TF2 SCREW 4110001194033 Y 1
12 O形圈3.55X45YC208-C04500S O-ring 4110003445089 Y 2
13 冷却器盖垫片J1000-1013106 Gasket 4110003445090 Y 1
14 机油冷却器J8L00-1013100 Oil cooler 4110002942009 Y 1
15 螺栓M8X135Q18408135 Screw 4110003445091 Y 4
16 六角法兰面螺栓Q1840820 SCREW 4110000179089 Q1840820 Y 2
17 环箍64Q67664 CLAMP 4110000009006 Y 2
18 胶管J8L00-1013002SF1 Hose 4110003244008 Y 1
19 螺栓M8x90Q1840890TF2 Screw 4110003577036 Y 3
20 螺栓M10X95Q1841095TF2 Screw 4110003445095 Y 1
21 放水开关F3000-1305040 SWITCH 4110001058003 Y 1
22 螺栓M10X30 Q1841030 Screw 4110003783011 Y 3
