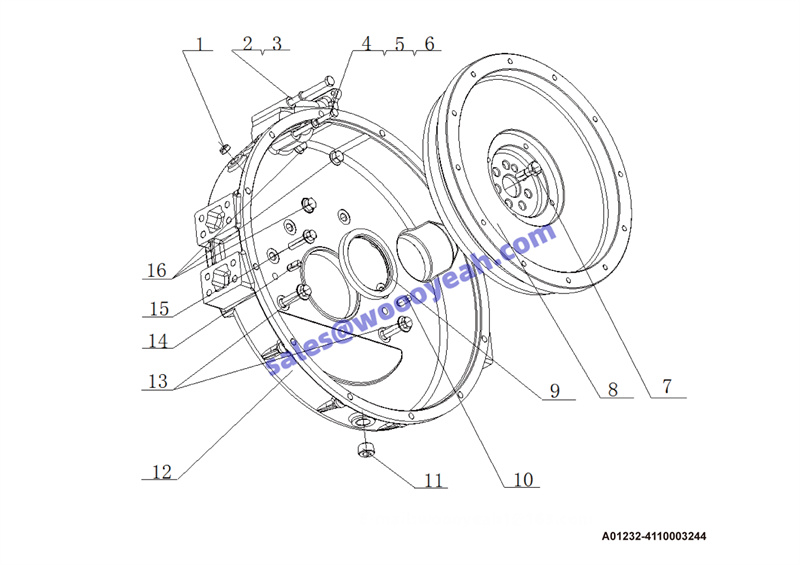

A01232-4110003244:动力输出总成-32 Flywheel assembly

1 螺塞M18X1.5 Q61518 PLUG 4110001058100 Y 1
2 螺栓M10X105 Q150B10105TF2 SCREW 4110001058091 Y 1
3 垫圈 10 Q40310 WASHER 4110000560319 Q40310 Y 1
4 螺栓M8X100 Q150B08100 SCREW 4110001058083 Y 1
5 垫圈Q40308 01137981 WASHER 4110000560304 Y 1
6 垫圈 8 Q40108 01132562 WASHER 4110000560297 Q40108 Y 1
7 飞轮螺栓6QA1-1005044A SCREW 4110000561177 6QA1-1005044A Y 7
8 飞轮及齿圈组件J8000-1005360 FLYWHEEL 4110001058063 Y 1
9 油封 100×125 YC209-100125FL SEALING RING 4110000560340
(4110000560341) YC209-100125FL Y 1
10 圆柱销YC24-B1226 PIN 4110000560346 YC24-B1226 Y 1
11 内六角锥形螺塞 NPT3/4 Q61906 PLUG 4110000561280 Q61906 Y 1
12 飞轮壳J8000-1600401 FLYWHEEL HOUSING 4110001058067 Y 1
13 螺栓M14X45Q1841445TF2 BOLT 4110001060159 Y 2
14 扁销6105Q-1600011 PIN 4110000560077 6105Q-1600011 Y 1
15 螺栓M12X45 Q1841245TF2 SCREW 4110000562061 Y 5
16 螺栓M12X40Q1841240TF2 BOLT 4110001060158 Y 3
