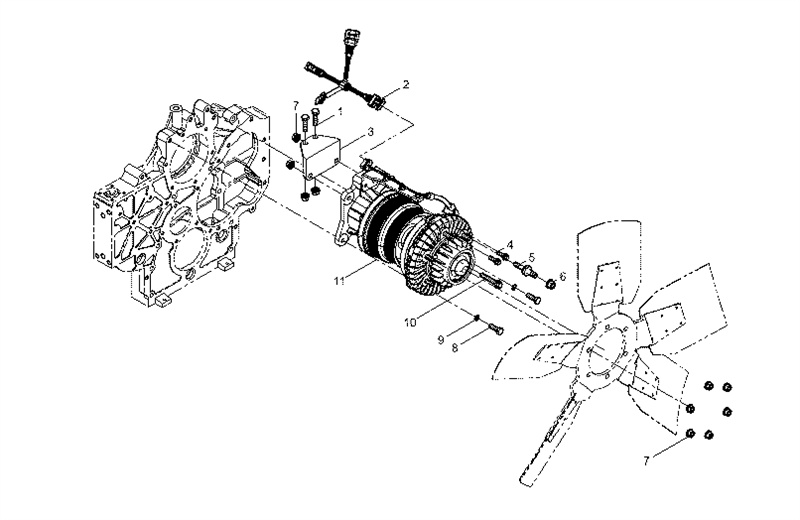

A101-4110001589:风扇托架结合组-30 fan housing

1 六角螺栓 90011270008 SCREW 4110001016010 Y 2
2 电磁离合器线束612600061657 WIRING HARNESS 4110000924043 Y 1
3 支架板615G00100011A BRACKET 4110000556240 Y 1
4 六角头螺栓90011430001 SCREW 4110000924175 Y 2
5 螺栓612600100154 SCREW 4110001755060 Y 1
6 六角法兰面承面带齿螺母612600061721 NUT 4110000924123 Y 1
7 六角法兰面承面带齿螺母612600061720 NUT 4110000924118 Y 4
8 六角头螺栓90003802527 SCREW 4110000924117 Y 2
9 波形弹性垫圈90003932024 SPRING WASHER 4110000025012 Y 2
10 六角法兰面承面带齿螺栓90011430025 SCREW 4110000924119 Y 1
11 电磁风扇离合器612600100188 FAN CLUTCH 4110001015057
(4110001016015) 612600100188 Y 1
