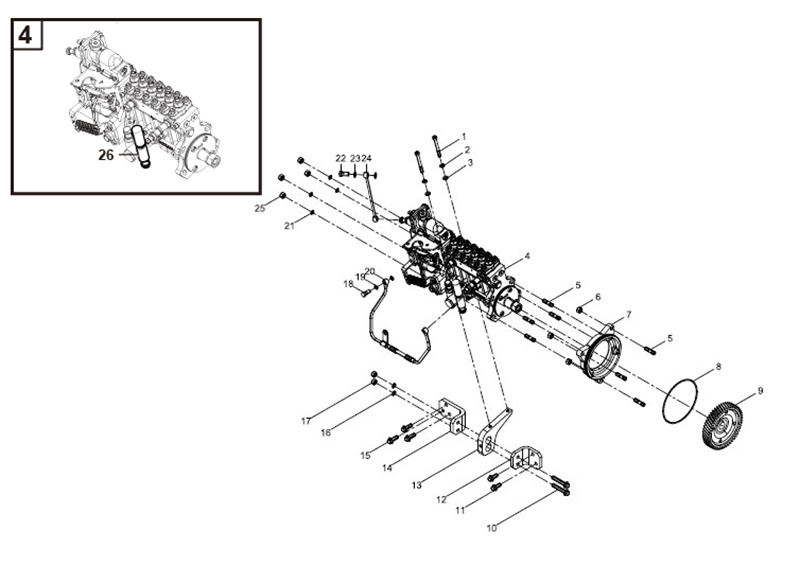

A101-4110001016:喷油泵结合组-41 fuel pump assembly

1 内六角圆柱头螺钉612600082135 SCREW 4110000924148 Y 2
2 自锁垫圈188250083 WASHER 4110000556253 Y 2
3 平垫圈90003930261 WASHER 4110000924147 Y 2
4 喷油泵612601080878 INJECTION PUMP 4110001016014 Y 1
5 双头螺柱90003813532 STUD 4110000924141 Y 7
6 六角法兰面承面带齿螺母612600061720 NUT 4110000924118 Y 3
7 喷油泵法兰612600082057 FLANGE 4110001015042 612600082057 Y 1
8 密封圈612600080400 GASKET 4110000924023 612600080400 Y 1
9 喷油泵齿轮612600082058 GEAR 4110001015046 612600082058 Y 1
10 六角法兰面承面带齿螺栓90011430034 SCREW 4110001755049 Y 2
11 六角法兰面承面带齿螺栓90011430008 SCREW 4110000924061 Y 2
12 喷油泵支架612600082142 BRACKET 4110001015044 612600082142 Y 1
13 喷油泵托架612600082094 BRACKET 4110001015045 612600082094 Y 1
14 喷油泵支架612600082141 BRACKET 4110001015043 612600082141 Y 1
15 六角法兰面承面带齿螺栓90011430012 SCREW 4110000924144 Y 3
16 弹簧垫圈90003931122 SPRING WASHER 4110000924080 Y 2
17 1型六角螺母90003871305 NUT 4110000924145 Y 2
18 空心螺栓612639000047 EYE BOLT 4110000924150 Y 1
19 密封垫圈612600080246 SEALING RING 4110000556132 Y 2
20 润滑油进油管总成612600082416 PIPE 4110000924143 Y 1
21 平垫圈90003930271 WASHER 4110000924137 Y 4
22 空心螺栓90003962612 EYE BOLT 4110000924142 Y 1
23 密封垫圈612600050042 WASHER 4110000846102 612600050042 Y 2
24 冒烟限制器空气管总成61560080159 TUBE 4110000924038 61560080159 Y 1
25 2型全金属六角锁紧螺母90003888452 NUT 4110000591035 90003888452 Y 4
26 输油泵612600082504 FUEL PUMP 4110000924044 Y 1
