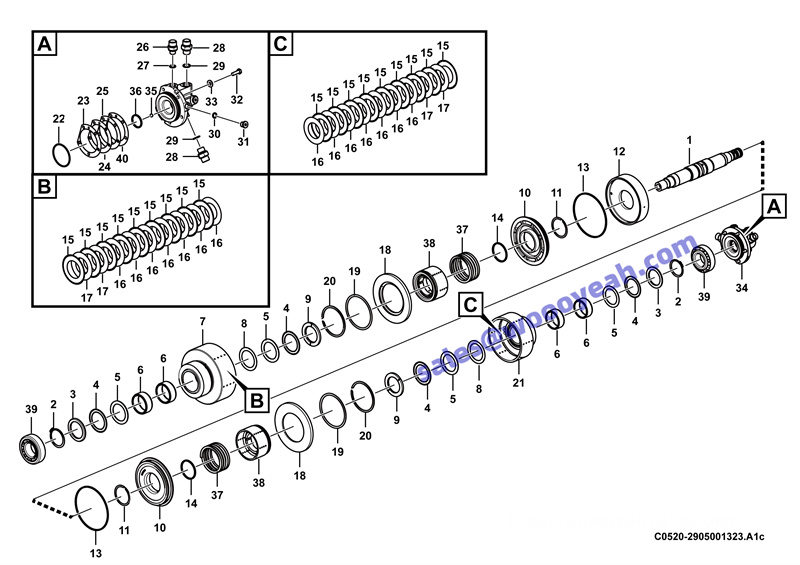

C0520-2905001323.A1C:离合器KFR-16 Hydraulic clutch fr

1 KFR轴 CLUTCH SHAFT 29050013801 Y 1
2 挡圈54 RETAINING RING 29050014061 Y 2
3 止推垫片 SHIM 29050013811 Y 2
4 轴承NTA-3446 BEARING 4110000628 Y 4
5 止推垫片 SHIM 29050014041 Y 4
6 轴承WJ-344016 BEARING 4110000625 Y 4
7 齿轮总成R11 GEAR 29050013821 Y 1
8 止推垫片 SHIM 29050013931 Y 2
9 隔离环 SPACER RING 29050013951 Y 2
10 活塞 PISTON 29050013881 Y 2
11 卡环 RETAINING RING 29050013991 Y 2
12 隔离架 SEPARATOR 29050013891 Y 1
13 活塞环 PISTON RING 29050014001 Y 2
14 活塞环 PISTON RING 29050013971 Y 2
15 主动摩擦片 FRICTION DISC 29050013861 Y 18
16 从动摩擦片 FRICTION DISC 29050013871 Y 6
17 从动摩擦片 FRICTION DISC 29050015511 Y 12
18 受压盘 PRESSURE DISC 29050013851 Y 2
19 卡环 RETAINING RING 29050013841 Y 2
20 卡环 RETAINING RING 29050013831 Y 2
21 齿轮总成R12 GEAR 29050013901 Y 1
22 O形圈GB3452.1-82.53.55G-FPM O-RING 4030000820 Y 1 23 调整垫片 SHIM 29050013241 Y 2 24 调整垫片 SHIM 29050013251 Y 4 25 调整垫片 SHIM 29050013261 Y 6 26 直接头 NIPPLE 29050014201 Y 1 27 O形圈LGB168-21324 O-RING 4040000019 Y 1 28 直接头LGB120-02220 NIPPLE 4041000132 Y 2 29 O形圈LGB168-21724 O-RING 4041001270 Y 2 30 O形圈LGB168-21124 O-RING 4041000775 Y 2 31 螺塞 PLUG 29050014411 Y 2 32 螺钉GB70.1-M830EpZn-8.8 SCREW 4011000448 GB70.1-M8*30EpZn-8.8 Y 5
33 垫片 SHIM 29050013451 Y 5
34 配油器 OIL DISTRIBUTOR 29050013631 Y 1
35 钢球GB308-8.5-GCr15 BALL 4090000130 Y 2
36 活塞环 PISTON RING 29050013911 Y 3
37 弹簧 SPRING 29050013981 Y 2
38 离合器轮毂 CLUTCH HUB 29050013961 Y 2
39 轴承HM803149/2/110/2/QCL7C BEARING 4021000173 Y 2
40 调整垫片 SHIM 29050026111 Y 1
