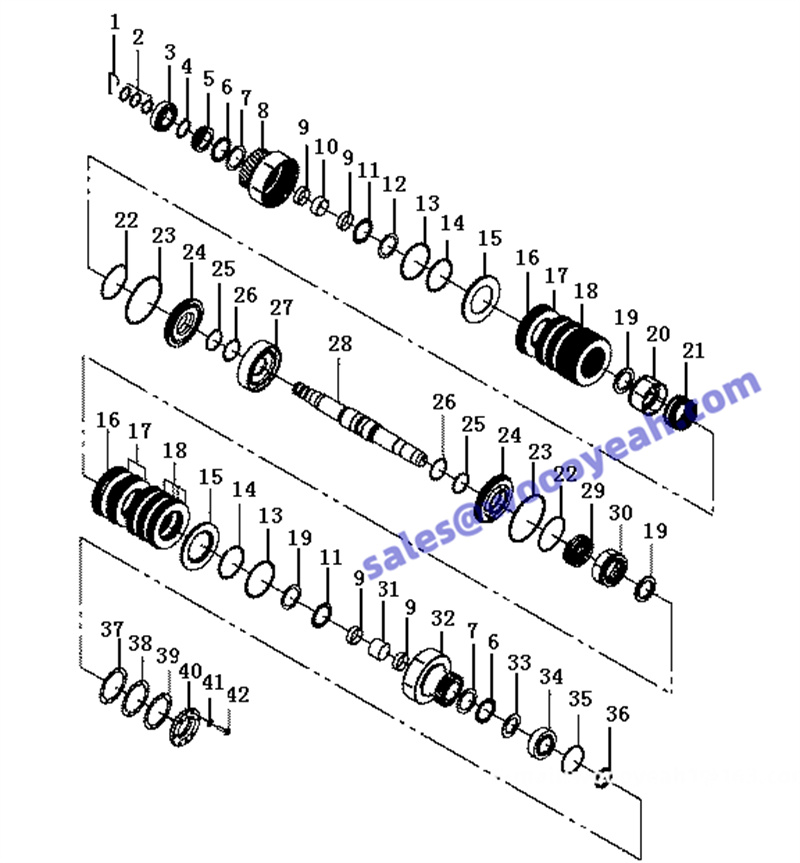

C12-2905001338:离合器K34-18 Clutch

1 钢球GB308-8.5-GCr15 BALL 4090000130 Y 2
2 活塞环 PISTON RING 29050013911 Y 3
3 轴承25581/25520 BEARING 4021000163 Y 1
4 挡圈50 RETAINING RING 29050014131 Y 1
5 止推垫片 SHIM 29050014291 Y 1
6 轴承NTA-3244 BEARING 4110000627 Y 2
7 止推垫片 SHIM 29050014231 Y 2
8 齿轮总成R41 GEAR 29050014271 Y 1
9 轴承K505517H BEARING 4110000629 Y 4
10 隔套 SPACER SLEEVE 29050014261 Y 1
11 轴承NTA-3446 BEARING 4110000628 Y 2
12 止推垫片 SHIM 29050013931 Y 2
13 卡环 RETAINING RING 29050013841 Y 2
14 卡环 RETAINING RING 29050013831 Y 2
15 受压盘 PRESSURE DISC 29050014181 Y 2
16 主动摩擦片 FRICTION DISC 29050014171 Y 15
17 从动摩擦片 FRICTION DISC 29050015521 Y 3
18 从动摩擦片 FRICTION DISC 29050014161 Y 12
19 隔离环 SPACER RING 29050013951 Y 2
20 离合器轮毂 CLUTCH HUB 29050014151 Y 1
21 弹簧 SPRING 29050013981 Y 1
22 活塞环 PISTON RING 29050014101 Y 2
23 活塞环 PISTON RING 29050014091 Y 2
24 活塞 PISTON 29050014111 Y 2
25 活塞环 PISTON RING 29050013971 Y 2
26 卡环 RETAINING RING 29050013991 Y 2
27 隔离架 SEPARATOR 29050014071 Y 1
28 K34轴 CLUTCH SHAFT 29050014051 Y 1
29 弹簧 SPRING 29050014121 Y 1
30 离合器轮毂 CLUTCH HUB 29050014141 Y 1
31 隔套 SPACER SLEEVE 29050014311 Y 1
32 齿轮总成R42 GEAR 29050014301 Y 1
33 定位环 LOCATING RING 29050014321 Y 1
34 轴承25590/25520/Q BEARING 4021000161 Y 1
35 O形圈GB3452.1-75.03.55G-FPM O-RING 4030000808 Y 1 36 油封456510 SEALING RING 4030000594 Y 1 37 调整垫片 SHIM 29050013511 Y 6 38 调整垫片 SHIM 29050013521 Y 4 39 调整垫片 SHIM 29050013531 Y 2 40 轴承保持架 BEARING SEAT 29050013501 Y 1 41 垫圈8 WASHER 29050015471 Y 6 42 螺栓GB5783-M825-8.8 BOLT 4011000724 Y 6
