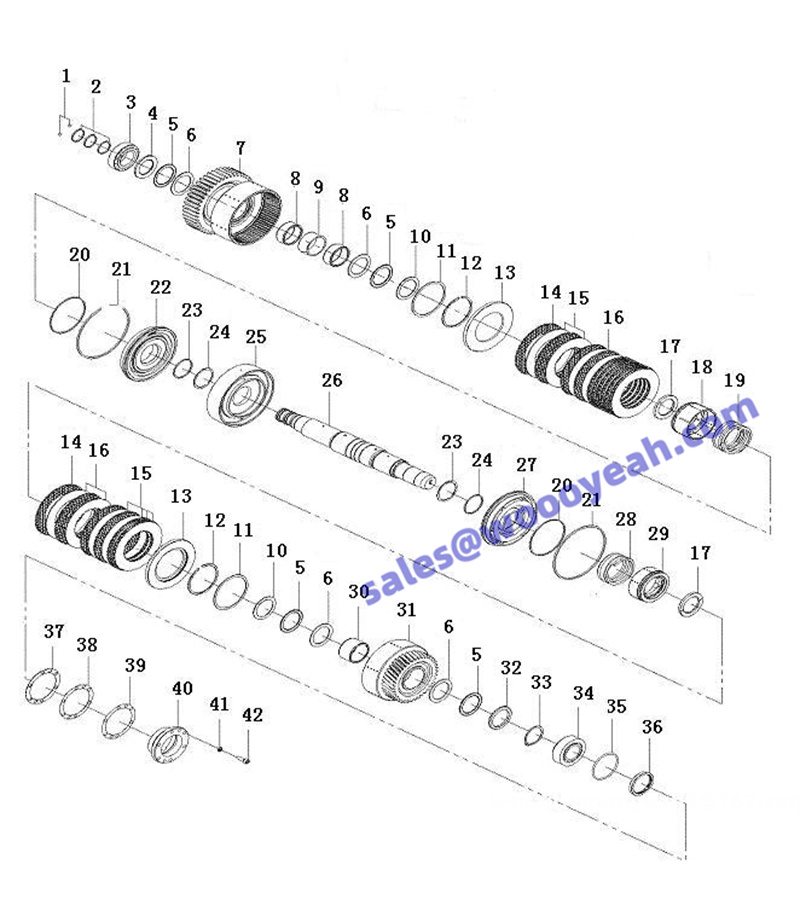

C13-2905001344:离合器K12-19 Clutch

1 钢球GB308-8.5-GCr15 BALL 4090000130 Y 2
2 活塞环 PISTON RING 29050013911 Y 3
3 轴承25590/25520/Q BEARING 4021000161 Y 1
4 定位环 LOCATING RING 29050014321 Y 1
5 轴承NTA-3446 BEARING 4110000628 Y 4
6 止推垫片 SHIM 29050014041 Y 4
7 齿轮总成R31 GEAR 29050014621 Y 1
8 轴承WJ-344016 BEARING 4110000625 Y 2
9 隔套 SPACER SLEEVE 29050014611 Y 1
10 止推垫片 SHIM 29050013931 Y 2
11 卡环 RETAINING RING 29050013841 Y 2
12 卡环 RETAINING RING 29050013831 Y 2
13 受压盘 PRESSURE DISC 29050013851 Y 2
14 从动摩擦片 FRICTION DISC 29050013871 Y 10
15 从动摩擦片 FRICTION DISC 29050015511 Y 6
16 主动摩擦片 FRICTION DISC 29050013861 Y 16
17 隔离环 SPACER RING 29050013951 Y 2
18 离合器轮毂 CLUTCH HUB 29050013961 Y 1
19 弹簧 SPRING 29050013981 Y 1
20 活塞环 PISTON RING 29050014561 Y 2
21 活塞环 PISTON RING 29050014571 Y 2
22 活塞 PISTON 29050014591 Y 1
23 活塞环 PISTON RING 29050013971 Y 2
24 卡环 RETAINING RING 29050013991 Y 2
25 隔离架 SEPARATOR 29050014581 Y 1
26 K12 轴 CLUTCH SHAFT 29050014381 Y 1
27 活塞 PISTON 29050014531 Y 1
28 弹簧 SPRING 29050014121 Y 1
29 离合器轮毂 CLUTCH HUB 29050014141 Y 1
30 轴承WJ-344024 BEARING 4110000626 Y 1
31 齿轮总成R32 GEAR 29050014431 Y 1
32 止推垫片 SHIM 29050013811 Y 1
33 挡圈54 RETAINING RING 29050014061 Y 1
34 轴承33209/Q BEARING 4021000162 Y 1
35 O形圈GB3452.1-77.53.55G-FPM O-RING 4030000821 Y 1 36 油封58728 SEALING RING 4030000595 Y 1 37 调整垫片 SHIM 29050013471 Y 2 38 调整垫片 SHIM 29050013481 Y 4 39 调整垫片 SHIM 29050013491 Y 6 40 轴承保持架 BEARING SEAT 29050013461 Y 1 41 垫片 SHIM 29050013451 Y 6 42 螺钉GB70.1-M825-8.8 SCREW 4014000171 Y 6
