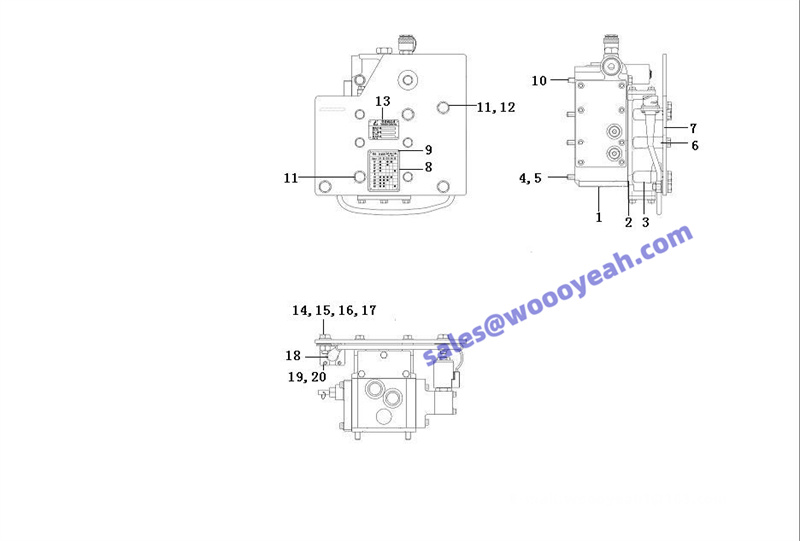

C16-2905001669:变速阀总成-22 shift control valve

1 控制阀 CONTROL VALVE 29050013711 Y 1
2 垫片 GASKET 29050013691 Y 1
3 减压阀总成 RELIEF VALVE 29050013681 Y 1
4 螺栓GB5782-M8160EpZn-8.8 SCREW 4011000940 Y 6 5 垫圈GB97.1-6EpZn-300HV WASHER 4015000207 Y 8 6 套 SLEEVE 29050017671 N 5 7 平护板 PROTECTING PLATE 29050021621 N 1 8 铭牌 NAME PLATE 29050015221 N 1 9 铆钉GB827-26-BL2 RIVET 4019000002 GB827-26-BL2 N 8 10 螺栓GB5782-M8100EpZn-8.8 BOLT 4011000720 Y 2
11 螺栓GB5782-M1075EpZn-8.8 BOLT 4011000052 GB5782-M1075EpZn-8.8 Y 2
12 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 2
13 标牌 Name plate 29050021651 N 1
14 螺栓GB5783-M816EpZn-8.8 BOLT 4011000102 GB5783-M816EpZn-8.8 Y 3
15 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 3
16 管夹 CLAMP 29120007671 Y 3
17 螺母GB6172.1-M8EpZn-05 NUT 4013000049 GB6172.1-M8EpZn-05 Y 3
18 线束总成 CABLE HARNESS 29050018591 N 1
19 螺钉GB818-M3*10EpZn-4.8 SCREW 4014000267 Y 4
20 螺母GB6170-M3EpZn-8 NUT 4013000159 GB6170-M3EpZn-8 Y 4
