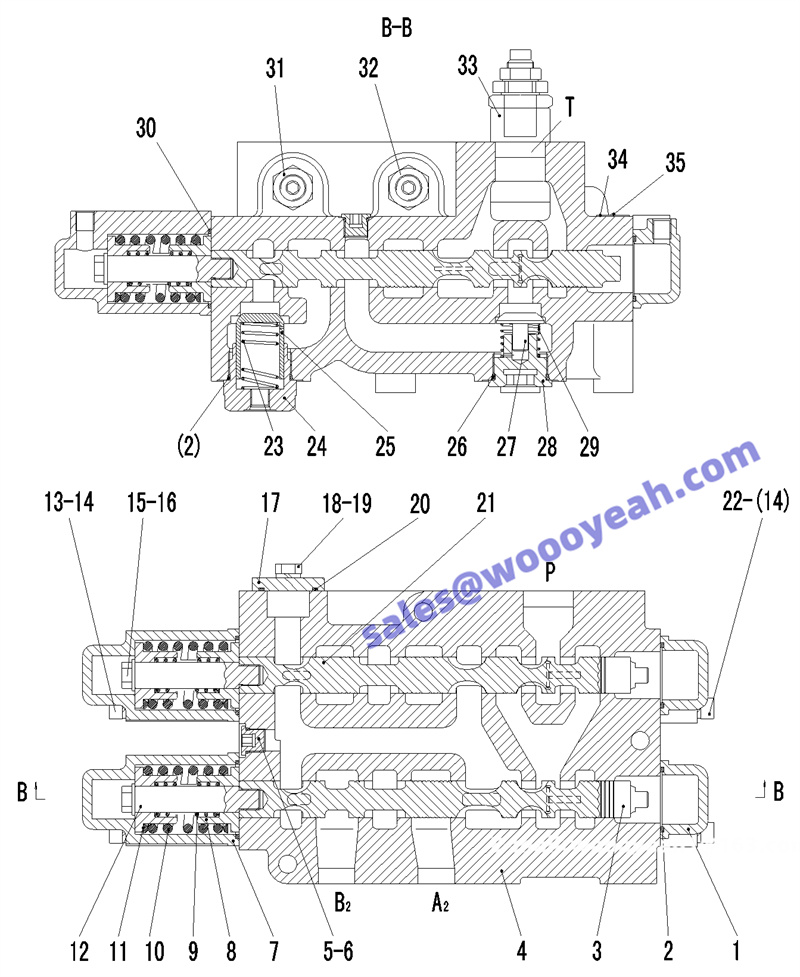

F11-4120002303:多路阀D32-17.5(331001)-44 control valve assembly

1 端盖D32-1 Cover 4120001054004 N 2
2 O形圈503.1 O-RING 7200001075 PGB1235-503.1 Y 3
3 动臂阀杆D32-2 spool 4120001054005 N 1
4 阀体D32-4 Valve body 4120001054006 N 1
5 螺塞D32-3 PLUG 4120002303004 Y 2
6 O形圈GB1235-202.4 O-RING 4030000011 GB1235-202.4 Y 2
7 端盖D32-5 Cover 4120001054009 N 2
8 弹簧座D32-6 Spring seat 4120001054012 N 4
9 弹簧D32-7 SPRING 4120001054010 Y 2
10 弹簧D32-8 SPRING 4120001054007 Y 2
11 调整垫片D32-9 SHIM 4120001054034 N 1
12 阀杆接头D32-21 joint 4120001054033 N 2
13 螺钉GB70.1-M10100EpZn-8.8 SCREW 4014000217 Y 4 14 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn Y 8 15 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 2 16 螺栓GB5783-M1220EpZn-8.8 SCREW 4011000087 GB5783-M1220EpZn-8.8 Y 2 17 盖板D32-11 Cover plate 4120002303005 N 1 18 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 2 19 螺栓GB5783-M1230EpZn-10.9 SCREW 4011000747 GB5783-M1230EpZn-10.9 Y 2 20 O型圈 O-RING 7200000446 PGB1235-453.1 Y 1
21 转斗阀杆D32-12 VALVE ROD 4120001054026 N 1
22 螺钉GB70.1-M101.545EpZn-8.8 SCREW 4014000115 GB70.1-M101.545EpZn-8.8 Y 4
23 弹簧D32-14 SPRING 4120001054015 Y 1
24 补油阀盖D32-13 Cover 4120001054014 N 1
25 补油阀D32-15 VALVE 4120001054016 Y 1
26 O形圈GB1235-443.5 O-RING 4030000706 Y 3 27 单向阀D32-17 CHECK VALVE 4120001054024 N 3 28 阀盖D32-19 Valve cover 4120001054022 N 3 29 弹簧D32-16 SPRING 4120001054023 Y 3 30 PO形圈GB1235-603.1 O-RING 4030000608 Y 2
31 小腔过载补油阀D32.1-00 VALVE 4120002303002 Y 1
32 大腔过载补油阀D32.1-00 CHECK VALVE 4120002303003 Y 1
33 安全阀D32.2a-00 RELIEF VALVE 4120002303001 Y 1
34 标牌D32-20 Name plate 4120002303006 N 1
35 铆钉GB827-24-BL2 RIVET 4019000001 GB827-24-BL2 Y 2
