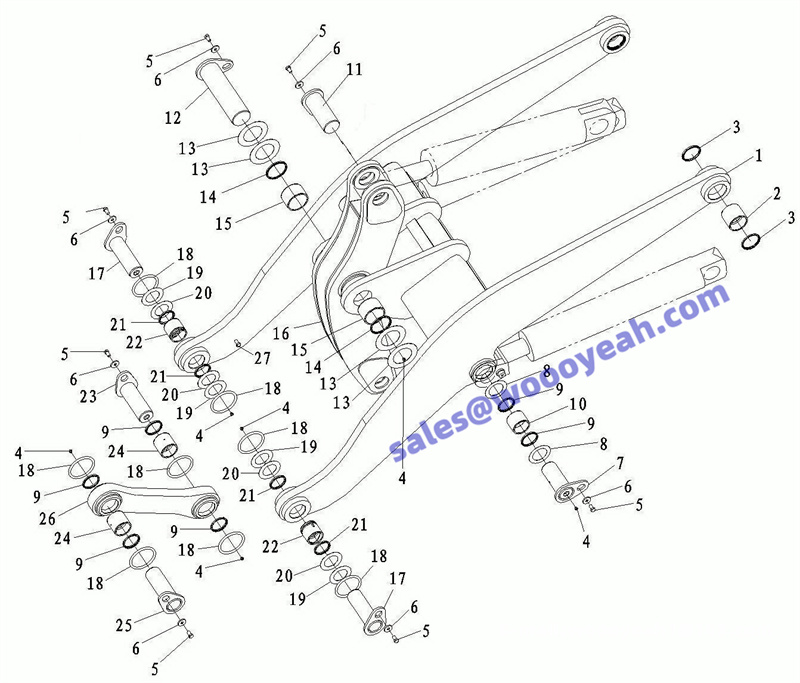

H1-2915001046:工作装置-47 Working equipment

1 动臂 LIFTING ARM 29150010472 N 1
-29150010474
2 轴套 BUSHING 29160008141 N 2
-4043000752
3 防尘圈LGB307-95 SEALING RING 4043000057 ZL50G.7.8 Y 4
4 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 9 5 螺栓GB5783-M1630EpZn-8.8 BOLT 4011000094 GB5783-M1630EpZn-8.8 Y 8 6 垫圈LGB001-16 WASHER 4040000002 ZL50F.7-14 Y 8 7 销轴LGB301-85115215G-40Cr WELD PIN 4043000278 N 2 -4043000728 8 垫片LGB303-851301 SHIM 4043000035 ZL50F.7-12 Y 4 9 防尘圈LGB307-85 SEALING RING 4043000056 ZL50G.7.4 Y 8 10 轴套LGB302-8580B2 BUSHING 4043000028 LGB302-8580B2 Y 2 11 销轴LGB301-95130R240-40Cr WELD PIN 4043000021 Y 1 12 销轴LGB301-110212R405/2-40Cr WELD PIN 4043000338 Y 1 13 垫片LGB303-1101801 SHIM 4043000043 LGB303-1101801 Y 4 14 防尘圈LGB307-110 SEALING RING 4043000058 LGB307-110 Y 2 15 轴套LGB302-11080B1 BUSHING 4043000031 LGB302-11080B1 Y 2 16 摇臂 ROCKER ARM 29150009962 Y 1 17 销轴LGB301-80140260-40Cr WELD PIN 4043000173 Y 2 18 O形圈LGB308-12812 O-RING 4043000059 ZL50F.7-7 Y 8
19 垫片LGB303-801301 SHIM 4043000033 LGB303-801301 Y 4
20 垫片LGB303-801302 SHIM 4043000034 LGB303-801302 Y 4
21 防尘圈LGB307-80 SEALING RING 4043000055 ZL40G.7.6 Y 4
22 套 BUSHING 29160000021 Y 2
23 销轴LGB301-85130R240-40Cr WELD PIN 4043000015 Y 1
24 轴套LGB302-8595B3 BUSHING 4043000027 ZL50G.7-6 Y 2 25 销轴LGB301-85142R265-40Cr WELD PIN 4043000060 LGB301-85142R265-40Cr Y 1 26 连杆 CONNECTING ROD 29150000041 Y 1 27 螺栓GB5786-M10120EpZn-8.8 BOLT 4011000597 GB5786-M101*20-Ep.Zn-8.8 Y 2
