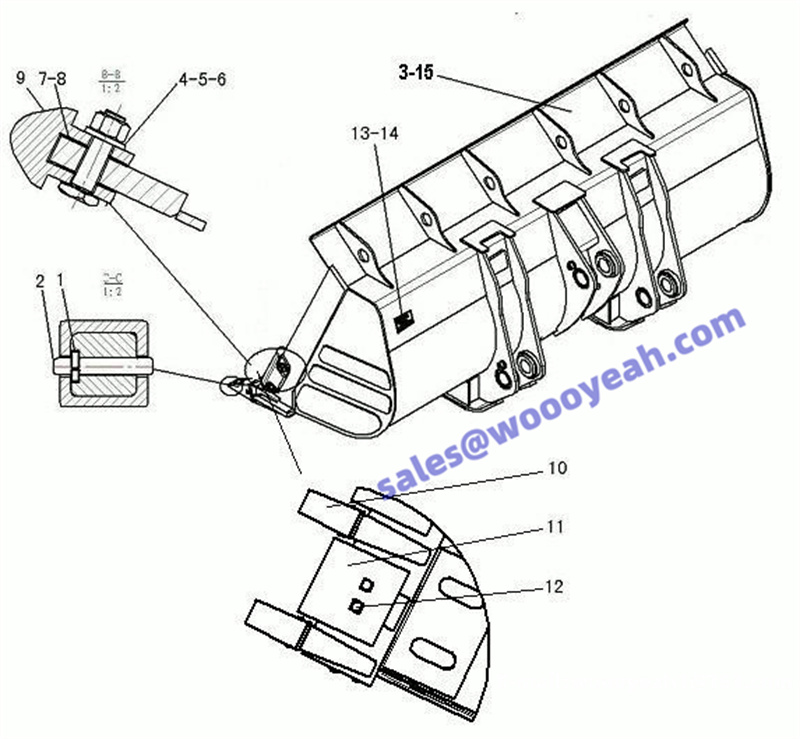

H2-2917004240:铲斗总成-48 Bucket assembly

1 销 STUD 29170018731 Y 8
2 锁销圈 LOCK RING 29170018741 Y 8
3 铲斗 BUCKET BODY 29170042411 Y 1
4 垫圈GB1230-24EpZn-45 WASHER 4015000003 GB1230-24EpZn-45 Y 18
5 螺母GB6170-M24EpZn-8 NUT 4013000021 GB6170-M24EpZn-8 Y 18
6 螺栓LGB002-M2490 BOLT 4040000003 LGB002-M2490 Y 4
7 垫片 SHIM 29170031111 Y 4
8 垫片 SHIM 29170031121 Y 2
9 护套 PROTECTING PLATE 29170042881 Y 2
10 齿套 BUCKET TOOTH 29170045111 Y 8
11 耐磨板 WEAR PLATE 29170042361 Y 7
12 螺栓 BOLT 29170025411 Y 14
13 铭牌 NAME PLATE 29170042441 N 1
14 铆钉GB827-35-BL2 RIVET 4019000012 GB827-35-BL2 Y 4
15 主刀板 CUTTING EDGE 29170025421 Y 1
16 铲斗总成2.7 ROCK BUCKET 29170042401 Y 1
