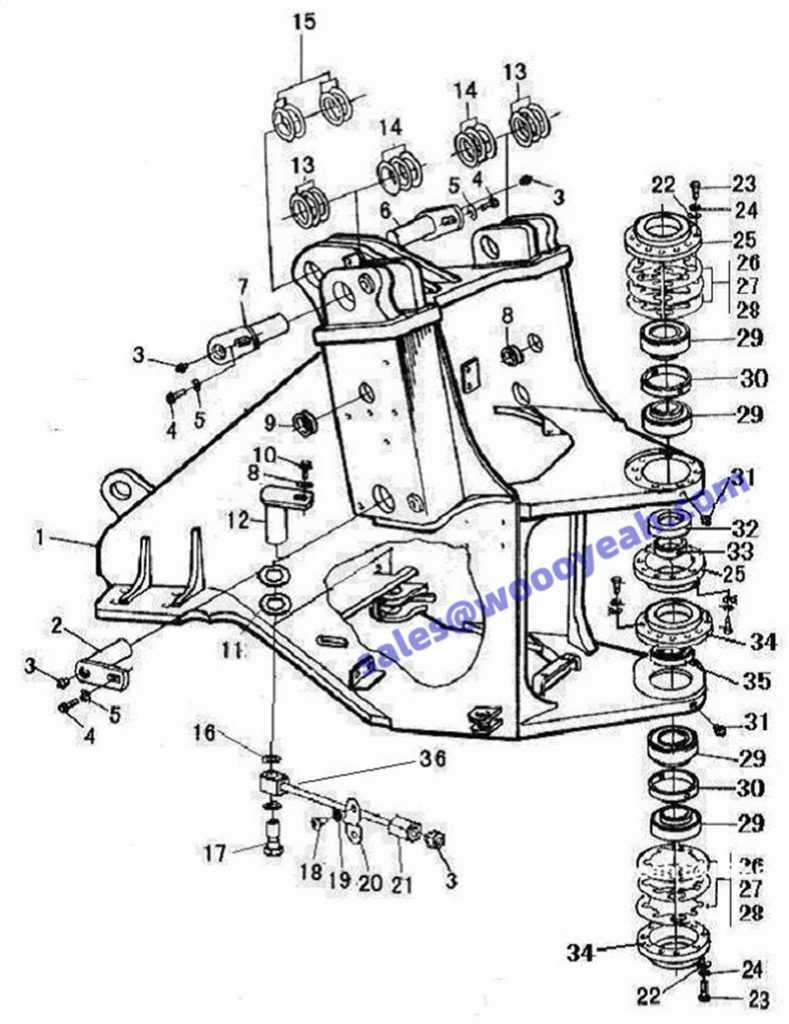

K1-2924001310:前车架附件-61 Front frame system

1 前车架 FRONT FRAME 29240013102 Y 1
2 销轴85165320 PIN 29250009001 Y 2
3 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 7 4 螺栓GB5783-M1630EpZn-8.8 BOLT 4011000094 GB5783-M1630EpZn-8.8 Y 5 5 垫圈LGB001-16 WASHER 4040000002 ZL50F.7-14 Y 5 6 销轴LGB301-95133250G-40Cr WELD PIN 4043000017 LGB301-95133250-40Cr Y 1 7 销轴LGB301-95147325G-40Cr WELD PIN 4043000019 ZL50G.11.9 Y 2 8 垫片LGB303-50901 SHIM 4043000032 LGB303-50901 Y 4 9 走线胶套 RUBBER SLEEVE 29250001351 Y 4 10 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 2 11 垫圈LGB001-12 WASHER 4040000001 LGB001-12 Y 2 12 焊接销轴 PIN 29250008121 Y 2 13 垫片LGB303-951601 SHIM 4043000040 ZL50G.11-20 Y 4 14 垫片LGB303-951602 SHIM 4043000041 ZL50G.11-20 Y 4 15 垫片LGB303-951801 SHIM 4043000042 LGB303-951801 Y 4 16 垫片 SHIM 29250000301 Y 4 17 通油螺栓 BOLT 29250000291 Y 2 18 螺钉GB818-M610EpZn-4.8 SCREW 4014000024 Y 4
19 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 4
20 管夹 CLAMP 29250000311 Y 2
21 油管 LUBRICATING PIPE 29250000321 ZL50G.11.17.1 Y 1
22 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 40
23 螺栓GB5782-M1235EpZn-8.8 BOLT 4011000061 GB5782-M1235EpZn-8.8 Y 40
24 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 46
25 盘 FLANGE 29250000091 ZL50F3.11-2 Y 2
26 垫片 SHIM 29250000061 ZL50G.11-8 Y 16
27 垫片 SHIM 29250000071 ZL50G.11-8 Y 4
28 垫片 SHIM 29250000081 ZL50G.11-8 Y 12
29 轴承GB297-33116 ROLLER BEARING 4021000058 GB297-3316 Y 4
30 间隔套 SLEEVE 29250000051 ZL50F3.11-1 Y 2
31 油杯JB7940.2-45°M101 LUBRICATING NIPPLE 4030000101 JB7940.2-45°M101 Y 2
32 防尘圈LGB307-95 SEALING RING 4043000057 ZL50G.7.8 Y 2
33 套 SLEEVE 29250000041 ZL50G.11-6 Y 1
34 盘 FLANGE 29250000151 ZL50G.11-13 N 2
-29250000152
35 密封圈GB9877.1-B8010510 SEALING RING 4043000256 Y 2
36 前转向销润滑油管 LUBRICATING PIPE 29250000201 ZL50G.11.17 Y 2
