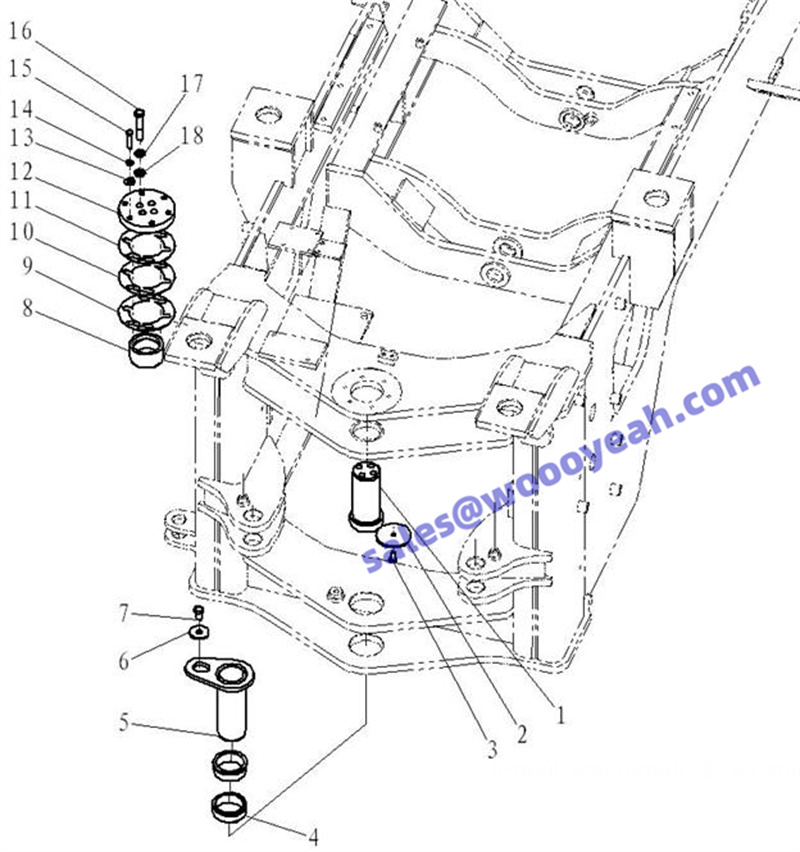

K2-2925000001:铰接-62 frame link

1 上铰接销 PIN 29250000031 ZL50G.11-5 Y 1
2 盘 FLANGE 29250000021 ZL50G.11-4 Y 1
3 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 1
4 套 SLEEVE 29250000171 ZL50G.11-14 Y 2
5 下铰接销 PIN 29250000161 ZL50G.11.6 Y 1
6 垫圈LGB001-16 WASHER 4040000002 ZL50F.7-14 Y 1
7 螺栓GB5783-M1625EpZn-8.8 BOLT 4011000093 GB5783-M1625EpZn-8.8 Y 1
8 套 SLEEVE 29250000131 ZL50G.11-11 Y 1
9 垫片 SHIM 29250000101 ZL50G.11-10 Y 4
10 垫片 SHIM 29250000111 ZL50G.11-10 Y 4
11 垫片 SHIM 29250000121 ZL50G.11-10 Y 4
12 盘 FLANGE 29250000141 ZL50G.11-12 Y 1
13 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 6
14 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 6
15 螺栓GB5782-M1250EpZn-8.8 BOLT 4011000064 GB5782-M1250EpZn-8.8 Y 6
16 螺栓GB5782-M1690EpZn-8.8 BOLT 4011000069 GB5782-M1690EpZn-8.8 Y 4
17 垫圈GB93-16-65Mn SPRING WASHER 4015000098 GB93-16-65Mn Y 4
18 垫圈GB97.1-16EpZn-300HV WASHER 4015000181 GB97.1-16EpZn-300HV Y 4
