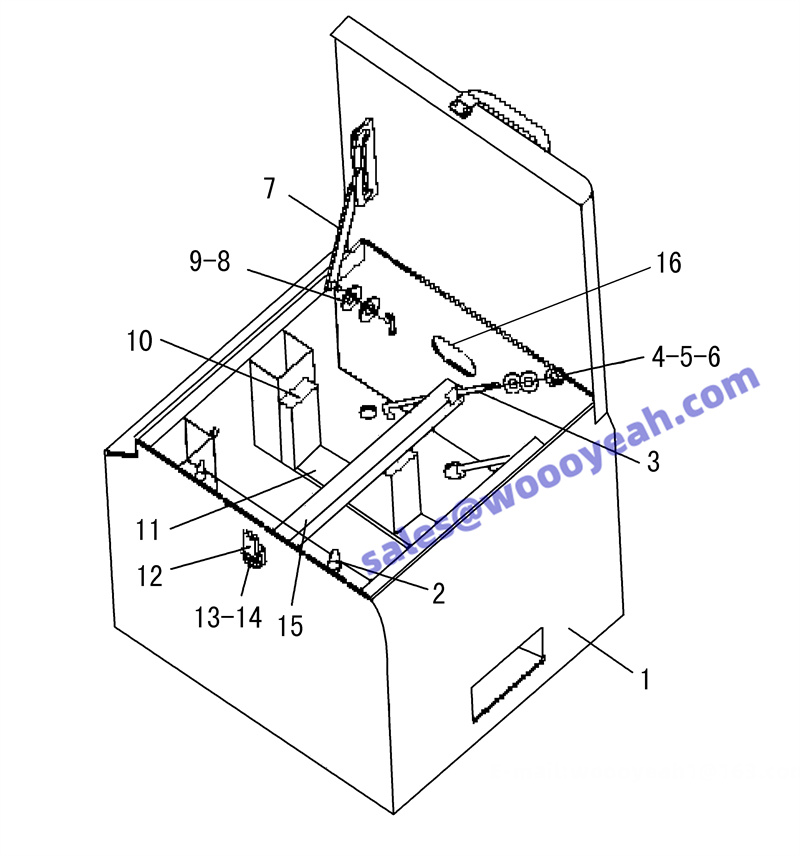

M6-2934001499:电瓶箱-77 battery box assembiy

1 电瓶箱 BATTERY BOX 29340015001 Y 1
2 橡胶塞 RUBBER PLUG 29340009101 ZL30F.12.2-1 Y 2
3 锁紧螺杆 BOLT 29280000071 ZL50G.11.3-2 Y 4
4 螺母GB6170-M8EpZn-8 NUT 4013000033 Y 4
5 垫圈GB93-8-65Mn SPRING WASHER 4015000036 GB93-8-65Mn Y 4
6 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 4
7 拉杆 PULL ROD 29340009091 ZL30F.12.2.2 Y 1
8 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 2
9 开口销GB91-420EpZn-Q235A SPLIT PIN 4016000035 GB91-420EpZn-Q235A Y 1
10 侧胶板 RUBBER CUSHION 29280000051 ZL50G.11.4-1 N 4
-4043001989
11 下胶板 RUBBER CUSHION 29280000061 ZL50G.11.3-1 Y 4
12 扣锁NBxs1013 LOCK 4190000025 NBXS1013 Y 1
13 螺钉GB818-M510EpZn-4.8 SCREW 4014000023 GB818-M510EpZn-4.8 Y 5
14 垫圈GB97.1-5EpZn-300HV WASHER 4015000110 GB97.1-5EpZn-300HV Y 5
15 锁紧角钢 BRACKET 29280000081 Y 2
16 走线胶套 RUBBER SLEEVE 29340011901 Y 1
