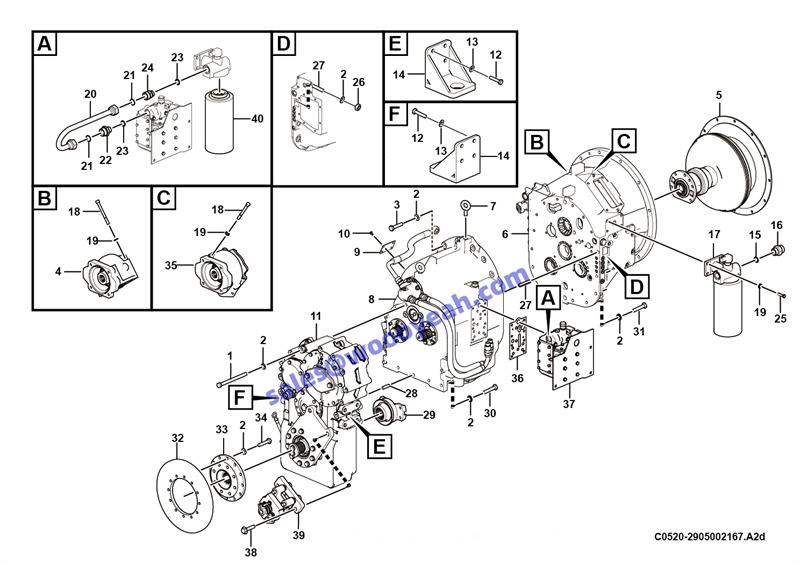

C0520-2905002167.A2d:VRT200变速箱总成-9 Vrt200 transmission assembly

1 螺栓GB5782-M12170EpZn－8.8 SCREW 4011000721 Y 11 2 垫圈GB1230-12EpZn-45 WASHER 4015000288 Y 44 3 螺栓GB5783-M1245EpZn-8.8 BOLT 4011000207 GB5783-M1245EpZn-8.8 Y 14 4 工作泵取力器 POWER TAKE-OFF 29050013211 Y 1 5 涡轮组 TURBINE 4110002017 N 1 6 变矩器总成 Torque converter assembly 29050015631 N 1 7 螺钉GB825-M16EpZn-25 SCREW 4014000028 GB825-M16EpZn-25 Y 2 8 变速箱总成 Transmission assembly 29050015621 N 1 9 VRT200变速箱标牌 Transmission scutcheon 29050021661 N 1 10 铆钉GB827-35-BL2 RIVET 4019000012 GB827-35-BL2 Y 4 11 分动箱总成 DROP BOX 29050015641 Y 1 -29050032431 12 螺栓GB5783-M1645EpZn-8.8 BOLT 4011000205 GB5783-M1645EpZn-8.8 Y 8 13 垫圈GB93-16-65Mn SPRING WASHER 4015000098 GB93-16-65Mn Y 8 14 连接座 ATTACHMENT BRACKET 29050017161 Y 2 15 O形圈LGB168-12931 O-RING 4041000765 Y 1 16 直接头LGB120-03633 NIPPLE 4041000577 Y 1 17 滤清器PYQ-251 FILTER 4120004491 Y 1 18 螺钉GB70.1-M10110EpZn-8.8 SCREW 4014000173 Y 8
19 垫片 SHIM 29050013611 Y 12
20 油管总成 HOSE ASSEMBLY 29050013171 Y 1
21 O形圈GB3452.1-25.81.80G-FPM O-RING 4030000817 Y 2 22 接头体 NIPPLE 29050013141 Y 1 23 O形圈LGB168-22331 O-RING 4041001264 Y 2 24 直接头LGB120-03628 NIPPLE 4041001272 Y 1 25 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 4 26 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 2 27 螺柱GB900-M1235EpZn-8.8 STUD 4012000036 Y 1
28 螺柱GB900-M1255EpZn-8.8 STUD 4012000034 Y 1 29 后法兰总成 CONNECTION FLANGE 29050016261 Y 1 30 螺栓GB5783-M1245EpZn-8.8 BOLT 4011000207 GB5783-M1245EpZn-8.8 Y 4 31 螺栓GB5783-M1250EpZn-8.8 BOLT 4011000092 GB5783-M1250EpZn-8.8 Y 1 32 制动盘 DISC BRAKE 29050016001 Y 1 33 前法兰 CONNECTION FLANGE 29050016011 Y 1 34 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 12 35 转向泵取力器 POWER TAKE-OFF 29050013201 Y 1 36 垫片 GASKET 29050013721 Y 1 37 变速阀总成 GEAR SELECTOR VALVE 29050016691 Y 1 38 螺栓GB16674-M1640EpZn-8.8 BOLT 4011000148 GB16674-M16*40EpZn-8.8 Y 2
39 制动器BL50F-1 PARKING BRAKE 4110001933 Y 1
40 旋装滤芯PYQ251-1000 FILTER INSERT 4120004492 Y 1
