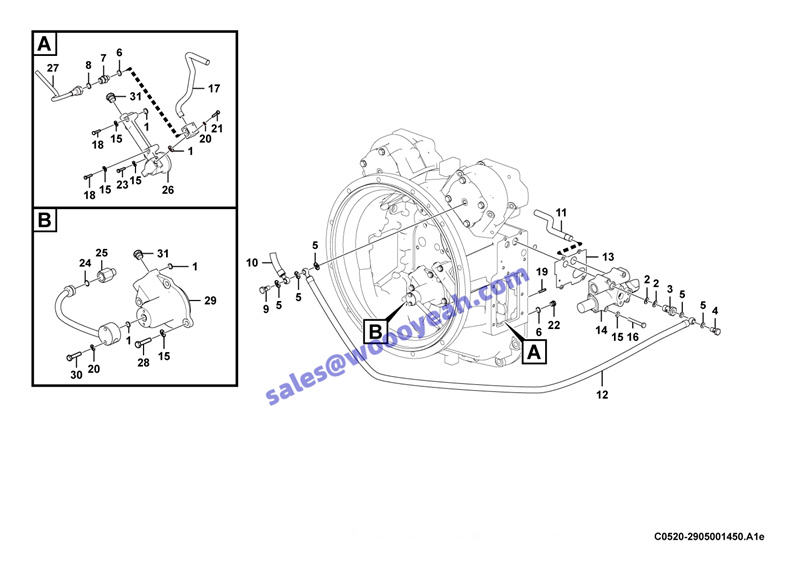

C0520-2905001450.A1e:变矩器润滑系统-13 Lubricating system
C0520-2905001450.A1e:变矩器润滑系统-13 Lubricating system
1 O形圈GB3452.1-11.81.80G-FPM O-RING 4030000810 Y 6 2 垫圈JB1002-18-T2 WASHER 4030000058 JB1002-18-T2 Y 2 3 螺栓 SCREW 29050014221 Y 1 4 螺栓 SCREW 29050013121 Y 2 5 垫圈JB1002-12-T2 WASHER 4030000056 JB1002-12-T2 Y 7 6 O形圈LGB168-21324 O-RING 4040000019 Y 2 7 直接头 NIPPLE 29050014201 Y 1 8 O形圈GB3452.1-12.51.80G-FPM O-RING 4030000809 Y 1
9 螺栓 SCREW 29050012991 Y 1
10 管 HOSE ASSEMBLY 29050013221 Y 1
-29050040841
11 回油管 TUBE 29050013621 Y 1
12 胶管 HOSE ASSEMBLY 29050013131 Y 1
-29050040861
13 密封垫 GASKET 29050013151 Y 1
14 变矩器润滑阀 LUBRICATING OIL VALVE 29050012981 Y 1
15 垫圈8 WASHER 29050015471 Y 11
16 螺栓GB5782-M860EpZn-8.8 SCREW 4011000718 Y 4 17 管 TUBE 29050013771 Y 1 18 螺栓GB5782-M860-8.8 SCREW 4011000717 Y 3
19 销 PIN 29050018421 Y 2
20 垫圈6 WASHER 29050015461 Y 4
21 螺栓GB5782-M640-8.8 SCREW 4011000713 N 2 22 螺塞LGB135-11422 PLUG 4041001459 Y 1 23 螺栓GB5783-M835-8.8 SCREW 4011000715 Y 2
24 O形圈GB3452.1-14.01.80G-FPM O-RING 4030000811 Y 1 25 管接头 NIPPLE 29050013791 Y 1 26 配油器 OIL DISTRIBUTOR 29050013741 Y 1 27 管 TUBE 29050013751 Y 1 28 螺栓GB5783-M820-8.8 BOLT 4011000723 Y 2
29 油分流块 CONNECTION BLOCK 29050013581 Y 1
30 螺栓GB5782-M6*35-8.8 SCREW 4011000966 Y 2
31 螺塞 PLUG 29050014701 Y 4
