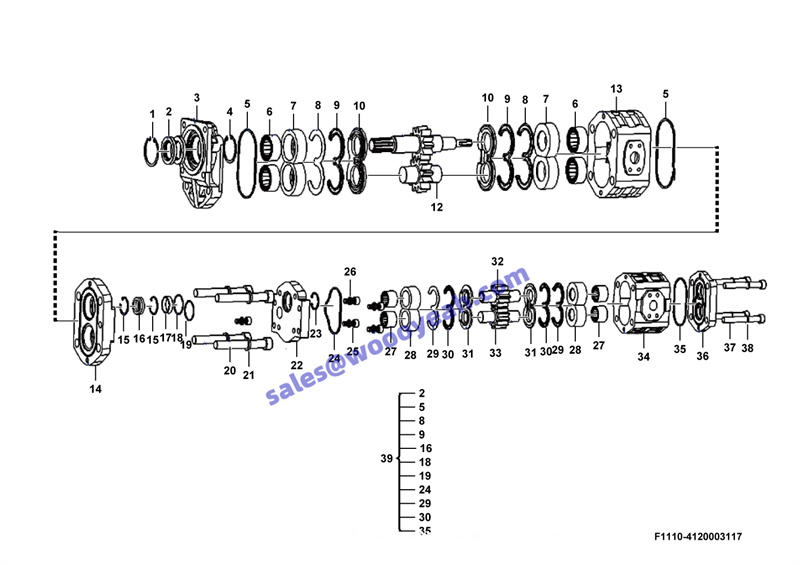

F1110-4120003117:双联泵(370142)-48 hydraulic pump(370142)

1 挡圈GB893.1-70-65Mn RETAINING RING 4015000013 GB893.1-70-65Mn Y 1
2 旋转轴唇形密封圈 43020200200 SEALING RING 4120001715002 Y 2
3 前盖21050200210 COVER 4120000903041 Y 1
4 P-挡圈GB893.1-65-65Mn Retaining ring 4015000491 Y 1
5 环形密封圈44020100700 SEALING RING 4120005081002 Y 2
6 滚针轴承 42010100200 NEEDLE BEARING 4120001715006 Y 4
-4120000903001
7 定位套21050900110 SPACER SLEEVE 4120001715007 Y 4
8 耳形挡片21050800110 RETAINING RING 4120001715008 Y 2
9 耳形密封垫21050700110 SEALING WASHER 4120001715009 Y 2
10 侧板21050600110 SIDE BOARD 4120001715010 Y 2
11 主动齿轮轴Ⅰ21142212010 DRIVE SHAFT 4120003117001 Y 1
12 从动齿轮轴21050412010 SHAFT 4120000903043 Y 1
13 泵体21050312010 PUMP BODY 4120000903044 Y 1
14 中间体Ⅰ21141300110 CENTERING BLOCK 4120003117002 Y 1
15 挡圈GB893.1-42-65Mn RETAINING RING 4015000204 GB893.1-42-65Mn Y 2
16 旋转轴唇形密封圈GB9877.1-B30427 SEALING RING 4030000263 GB9877.1-B30427 Y 2
17 连接套21081600110 ENGAGING SLEEVE 4120005081009 Y 1
18 O形圈GB3452.1-40.02.65G O-RING 4030000030 GB3452.1-402.65G Y 1
19 O形密封圈43010102600 O-RING 4120005081008 Y 1
20 螺钉44010102580 SCREW 4120000903045 Y 4
21 垫圈GB93-20-65Mn SPRING WASHER 4015000030 GB93-20-65Mn Y 4
22 中间体21081400110 CENTERING BLOCK 4120005081012 Y 1
23 P挡圈GB893.1-40-65Mn SNAP RING 4015000244 Y 1
24 环形密封圈 44020100200 SEALING RING 4120000171060 Y 1
25 螺钉GB70.1-M1235EpZn-10.9 SCREW 4014000090 GB70.1-1235EpZn-10.9 N 4
26 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 5
27 滚针轴承42010100300 NEEDLE BEARING 4120000171061 Y 4
28 定位套21010900110 SPACER SLEEVE 4120000171062 Y 4
29 耳形挡片21010800110 RETAINING RING 4120000171063 Y 2
30 耳形密封垫21010700110 SEALING WASHER 4120000171064 Y 2
31 侧板21010600110 SIDE BOARD 4120000171065 Y 2
32 主动齿轮轴Ⅱ21061109010 DRIVE SHAFT 4120003117003 Y 1
33 从动齿轮轴21010409010 Shaft 4120003117004 Y 1
34 泵体21010309010 Pump body 4120003117005 Y 1
35 环形密封圈 44020100100 SEALING RING 4120005081016 Y 1
36 后盖21010500110 COVER 4120005081017 Y 1
37 螺钉41020800701 SCREW 4120003117006 Y 4
38 垫圈GB93-14-65Mn SPRING WASHER 4015000027 GB93-14-65Mn Y 4
39 密封件包 SEALING RING KIT 4120003117017 Y 1
