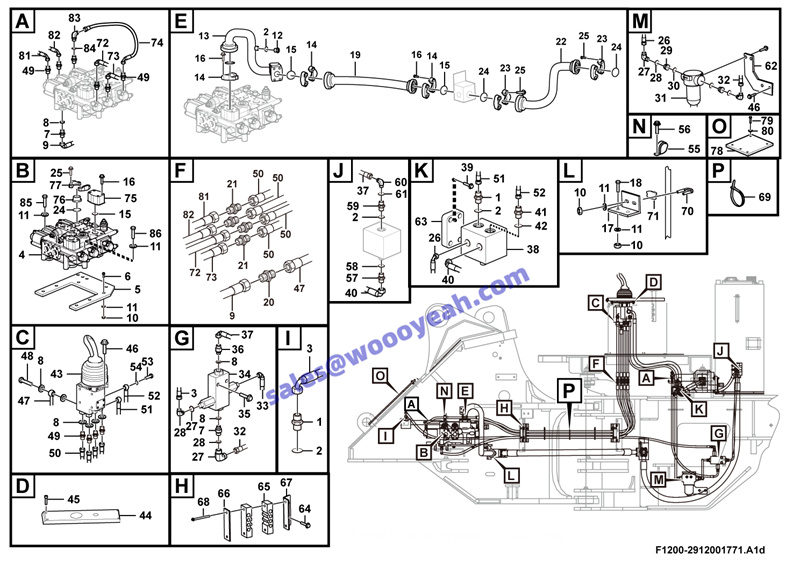

F1200-2912001771.A1d:液压操纵总成-50 Hydraulic control assembly

1 直接头LGB120-01614 NIPPLE 4041000604 Y 3
2 O形圈LGB168-11124 O-RING 4041000767 Y 9
3 软管LGB128-004300 HOSE ASSEMBLY 4041001469 Y 1
4 多路阀D32A-18 CONTROL VALVE 4030000182 D32A-18 Y 1
5 多路阀固定板 ANCHOR PLATE 29120016251 Y 1
6 螺栓GB16674-M1650EpZn-8.8 BOLT 4011000149 GB16674-M1650EpZn-8.8 Y 3
7 接头 NIPPLE 29120007651 Y 2
8 垫圈 WASHER 29120014931 Y 17
9 软管LGB125-004270 HOSE ASSEMBLY 4041001185 Y 1
10 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 7
11 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 10
12 螺塞LGB135-01422 PLUG 4041000774 Y 5
13 多路阀回油钢管 PIPE 29120000031 Y 1
14 分体法兰LGB117-314650 FLANGE HALF 4041000011 Y 3
15 O形圈GB3452.1-47.53.55G O-RING 4030000130 GB3452.1-47.53.55G Y 4
16 螺栓GB16674-M1235EpZn-8.8 BOLT 4011000477 GB16674-M1235EpZn-8.8 Y 16
17 固定支架 BRACKET 29120000051 Y 1
18 螺栓GB16674-M1240EpZn-8.8 BOLT 4011000320 GB16674-M1240EpZn-8.8 Y 2
-4011001244
19 软管LGB161-014135 HOSE ASSEMBLY 4041000894 Y 1
20 直接头 NIPPLE 29120017731 Y 1
21 直接头 NIPPLE 29120017721 Y 4
22 软管LGB162-012195 HOSE ASSEMBLY 4041001456 Y 1
23 分体法兰LGB117-312550 FLANGE HALF 4041000056 Y 2
24 O形圈GB3452.1-37.53.55G O-RING 4030000029 GB3452.1-37.53.55G Y 4
-4041000878
25 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 16
26 软管LGB125-004086 HOSE ASSEMBLY 4041001365 Y 1
27 组合接头LGB143-01608 NIPPLE 4041001023 Y 3
28 O形圈GB3452.1-8.001.80G O-RING 4030000240 GB3452.1-81.8G Y 3
29 接头 NIPPLE 29120015081 Y 2
30 O形圈GB3452.1-32.52.65G O-RING 4030000276 GB3452.1-32.52.65G Y 2
31 滤油器PLF-C3010 HYDRAULIC FLUID FILTER 4120001954 Y 1 32 软管LGB125-004040 HOSE ASSEMBLY 4041000580 Y 1 33 选择阀进油胶管 HOSE ASSEMBLY 29120017881 Y 1 34 压力选择阀SF8-D VALVE 4120005063 Y 1 35 螺栓GB16674-M1055EpZn-8.8 BOLT 4011000473 GB16674-M1055EpZn-8.8 Y 2 36 接头 NIPPLE 29120007661 Y 1 37 软管LGB125-005088 HOSE ASSEMBLY 4041000639 Y 1 38 过渡块 BLOCK 29120012111 Y 1 39 螺栓GB16674-M1060EpZn-8.8 BOLT 4011000279 GB16674-M1060EpZn-8.8 Y 4 40 过渡块至液压油箱软管 HOSE ASSEMBLY 29120012241 Y 1 41 直接头LGB120-02222 NIPPLE 4041000143 Y 2 42 O形圈LGB168-11924 O-RING 4041000771 Y 2 43 先导阀总成DXS-00 CONTROL LEVER 4120002027 Y 1 44 操纵箱盖PS COVER 29120015911 Y 1 45 螺钉GB70.1-M620EpZn-8.8 SCREW 4014000058 GB70.1-M620EpZn-8.8 Y 6 46 螺栓GB16674-M1020EpZn-8.8 BOLT 4011000447 GB16674-M1020EpZn-8.8 Y 9 47 前部先导油管（b1） HOSE ASSEMBLY 29120010861 Y 1 48 螺栓JB999-M141.532EpZn-35 BOLT 4011000344 JB999-M141.532-35 Y 2 49 接头 NIPPLE 29120015401 Y 10 50 软管LGB124-003058 HOSE ASSEMBLY 4041001202 Y 4 51 前部先导油管（a1） HOSE ASSEMBLY 29120010831 Y 1 52 先导阀回油管 HOSE ASSEMBLY 29120016101 Y 1 53 螺栓JB999-M181.540EpZn-35 BOLT 4011000366 JB999-M181.540-35 Y 1 54 垫圈 WASHER 29120015221 Y 2 55 管夹 CLAMP 29120007671 Y 3 56 螺栓GB16674-M816EpZn-8.8 BOLT 4011000461 GB16674-M816EpZn-8.8 Y 3 57 直接头LGB120-02218 NIPPLE 4041000095 Y 1 58 O形圈LGB168-11524 O-RING 4041000768 Y 1 59 直接头LGB120-01814 NIPPLE 4041000150 Y 1 60 组合接头LGB143-01810 NIPPLE 4041001063 Y 1 61 O形圈GB3452.1-10.01.80G O-RING 4030000490 Y 1
62 固定板 ANCHOR PLATE 29120016021 Y 1
63 固定板 ANCHOR PLATE 29120016011 Y 1
64 螺栓GB16674-M1225EpZn-8.8 BOLT 4011000560 GB16674-M1225EpZn-8.8 Y 4
65 管夹 CLAMP 29120016741 Y 4
66 固定板 ANCHOR PLATE 29120016951 Y 2
67 固定板 ANCHOR PLATE 29120016351 Y 2
68 螺栓GB16674-M890EpZn-8.8 BOLT 4011000493 GB16674-M890EpZn-8.8 Y 4
69 扎丝LG13-ZS4250 CABLE TIE 4190000020 LG13-ZS4250 Y 3
70 U形螺栓LGB159-14254 U-BOLT 4041000954 Y 1
71 底板LGB160-4254 BRACKET 4041000955 Y 1
72 软管LGB125-003220 HOSE ASSEMBLY 4041001455 Y 1
73 软管LGB125-003210 HOSE ASSEMBLY 4041001454 Y 1
74 软管LGB125-003060 HOSE ASSEMBLY 4041001223 Y 1
75 多路阀进油块 VALVE BLOCK 29120018541 Y 1
76 防尘盖LGB134-01255 DUST COVER 4041000716 Y 2
77 分体法兰LGB117-312551 FLANGE HALF 4041000027 Y 2
78 前盖板 COVER PLATE 29120014792 Y 1
79 螺栓GB5783-M1020EpZn-8.8 BOLT 4011000081 GB5783-M1020EpZn-8.8 Y 5
80 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 5
81 软管LGB125-003280 HOSE ASSEMBLY 4041001435 Y 1
82 软管LGB125-003270 HOSE ASSEMBLY 4041001309 Y 1
83 组合接头LGB143-01406 NIPPLE 4041001047 Y 1
84 O形圈GB3452.1-6.001.80G O-RING 4030000530 Y 1 85 螺栓GB5782-M12165EpZn-8.8 BOLT 4011000057 GB5782-M12165EpZn-8.8 Y 2 86 螺栓GB5782-M12145EpZn-8.8 BOLT 4011000056 GB5782-M12*145EpZn-8.8 Y 1
