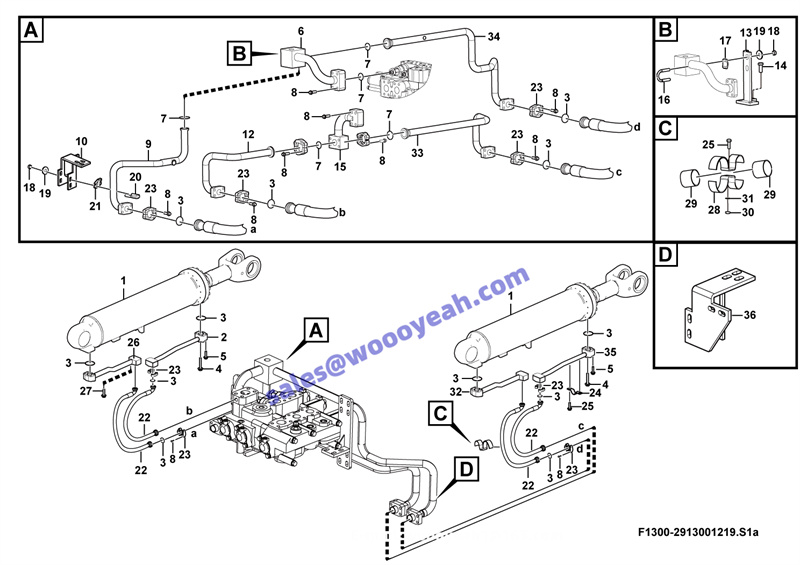

F1300-2913001219.S1a:举升缸总成-54 Lifting cylinder system

1 动臂油缸HSGF-180100798-1348 LIFTING CYLINDER 4120000600 HSGF-180100798-1348 N 2
(4120000600J)
2 左动臂缸小腔钢管 PIPE 29130012441 Y 1
3 螺栓GB16674-M1055EpZn-8.8 BOLT 4011000473 GB16674-M1055EpZn-8.8 Y 8
4 螺栓GB16674-M1050EpZn-8.8 BOLT 4011000309 GB16674-M1050EpZn-8.8 Y 8
5 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 10
6 动臂联大腔三通钢管 PIPE 29130010861 Y 1
7 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 56
8 O形圈GB3452.1-37.53.55G O-RING 4030000029 GB3452.1-37.53.55G Y 6
-4041000878
9 阀至左动臂缸大腔钢管 PIPE 29130010891 Y 1
10 左支架 BRACKET 29130012111 Y 1
11 螺栓GB16674-M1230EpZn-8.8 BOLT 4011000479 GB16674-M1230EpZn-8.8 Y 6
12 阀至左动臂缸小腔钢管 PIPE 29130010961 Y 1
13 钢管支架 BRACKET 29130011001 Y 1
14 螺栓GB16674-M1025EpZn-8.8 BOLT 4011000474 GB16674-M1025EpZn-8.8 Y 3
-4011001299
15 动臂联小腔三通钢管 PIPE 29130010981 Y 1
16 U形螺栓LGB159-03646 U-BOLT 4041001141 Y 1
17 底板LGB160-3646 BRACKET 4041001142 Y 1
18 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 14
19 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 14
20 U形螺栓LGB159-03040 U-BOLT 4041000958 Y 6
21 底板LGB160-3040 BRACKET 4041001018 Y 6
22 动臂缸胶管 HOSE ASSEMBLY 29130010571 Y 4
23 分体法兰LGB117-310490 FLANGE HALF 4041000043 Y 8
24 管夹 CLAMP 29130000111 Y 2
25 螺栓GB16674-M820EpZn-8.8 BOLT 4011000458 GB16674-M820EpZn-8.8 Y 8
26 右动臂缸大腔钢管 PIPE 29130000051 Y 1
27 螺栓GB16674-M1016EpZn-8.8 BOLT 4011000488 GB16674-M1016EpZn-8.8 Y 2
28 管夹 CLAMP 29130010371 Y 8
29 缓冲套LGB123-0740 RUBBER SLEEVE 4041000869 Y 8
30 螺母GB6170-M8EpZn-8 NUT 4013000033 Y 4
31 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 4
32 左动臂缸大腔钢管 PIPE 29130000031 Y 1
33 阀至右动臂缸小腔钢管 PIPE 29130010941 Y 1
34 阀至右动臂缸大腔钢管 PIPE 29130010921 Y 1
35 右动臂缸小腔钢管 PIPE 29130012461 Y 1
36 右支架 BRACKET 29130012131 Y 1
