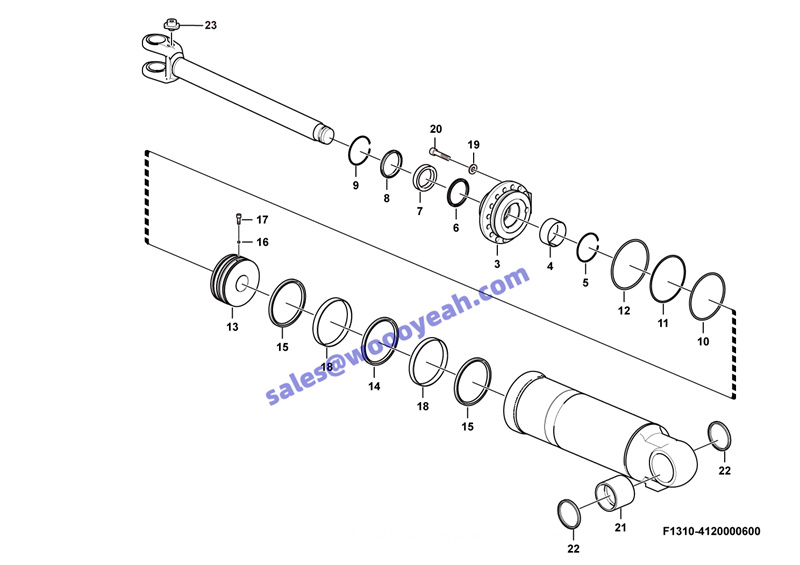

F1310-4120000600:动臂油缸(3713CH)-55 Lift arm cylinder(3713CH)

1 缸筒总成 24A133270 CYLINDER TUBE 4120000600005 Y 1
2 活塞杆总成 24A111810 PISTON ROD 4120000600006 Y 1
3 缸盖24A170330 COVER 4120000600007 Y 1
4 衬套24S2A0401 BUSHING 4120002144005 Y 1
5 钢丝挡圈24C001120 RETAINING RING 4120003685004 Y 1
6 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
7 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
8 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
9 钢丝挡圈-孔用24C001260 120*2.5t RETAINING RING 4120004489005 N 1
-4120003685002
10 O形圈24K317021 O-RING 4120000600008 Y 1
11 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
12 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
13 活塞24A180320 PISTON 4120000600009 Y 1
14 密封件包24A101150S SEALING RING KIT 4120000600011 Y 2
15 密封件包24A101150S SEALING RING KIT 4120000600011 Y 1
16 钢球24U005001 D5 BALL 4120004489008 N 1
-4090000168
17 内六角圆柱头螺钉24T508251 M8x25L HEX. SOCKET SCREW 4120004489009 Y 1
18 密封件包24A101150S SEALING RING KIT 4120000600011 Y 2
19 弹性垫圈24T401602 D16 SPRING WASHER 4120004488007 Y 16
20 内六角圆柱头螺钉24T516605 SCREW 4120002144006 Y 16
21 轴套24C051020 BUSHING 4120000600010 Y 1
22 密封件包24A101150S SEALING RING KIT 4120000600011 Y 2
23 固定座24A151030 M16 SEAT 4120004488009 Y 1
