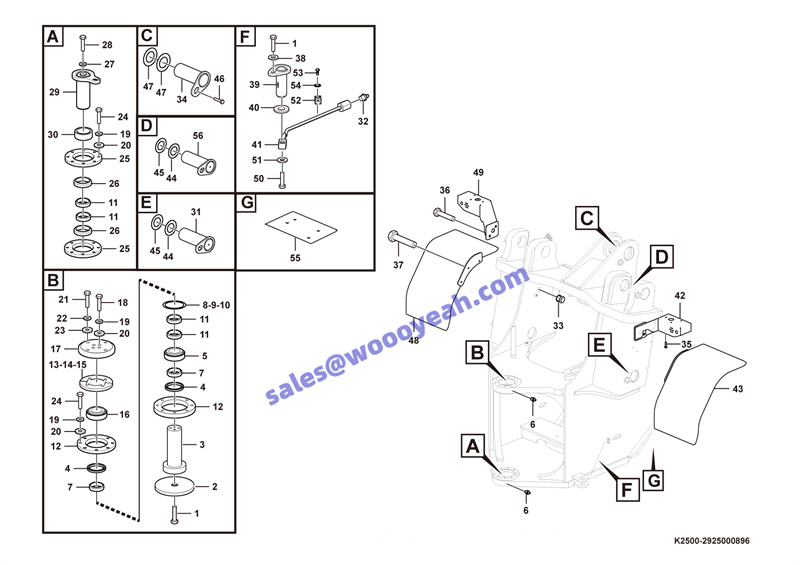

K2500-2925000896:前车架附件-76 Front frame system

1 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 3
2 盘 FLANGE 29250000021 ZL50G.11-4 Y 1
3 上铰接销 PIN 29250000031 ZL50G.11-5 Y 1
4 防尘圈LGB307-95 SEALING RING 4043000057 ZL50G.7.8 Y 2
5 套 SLEEVE 29250000041 ZL50G.11-6 Y 1
6 油杯JB7940.2-45°M101 LUBRICATING NIPPLE 4030000101 JB7940.2-45°M101 Y 2
7 间隔套 SLEEVE 29250000051 ZL50F3.11-1 Y 2
8 垫片 SHIM 29250000061 ZL50G.11-8 Y 16
9 垫片 SHIM 29250000071 ZL50G.11-8 Y 4
10 垫片 SHIM 29250000081 ZL50G.11-8 Y 12
11 轴承GB297-33116 ROLLER BEARING 4021000058 GB297-3316 Y 4
12 盘 FLANGE 29250000091 ZL50F3.11-2 Y 2
13 垫片 SHIM 29250000101 ZL50G.11-10 Y 4
14 垫片 SHIM 29250000111 ZL50G.11-10 Y 4
15 垫片 SHIM 29250000121 ZL50G.11-10 Y 4
16 套 SLEEVE 29250000131 ZL50G.11-11 Y 1
17 盘 FLANGE 29250000141 ZL50G.11-12 Y 1
18 螺栓GB5782-M1250EpZn-8.8 BOLT 4011000064 GB5782-M1250EpZn-8.8 Y 6
19 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 46
20 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 46
21 螺栓GB5782-M1690EpZn-8.8 BOLT 4011000069 GB5782-M1690EpZn-8.8 Y 4
22 垫圈GB93-16-65Mn SPRING WASHER 4015000098 GB93-16-65Mn Y 4
23 垫圈GB97.1-16EpZn-300HV WASHER 4015000181 GB97.1-16EpZn-300HV Y 4
24 螺栓GB5782-M1235EpZn-8.8 BOLT 4011000061 GB5782-M1235EpZn-8.8 Y 40
25 盘 FLANGE 29250000152 ZL50G.11-13 Y 2
26 密封圈GB9877.1-B8010510 SEALING RING 4043000256 Y 2
27 垫圈LGB001-16 WASHER 4040000002 ZL50F.7-14 Y 6
28 螺栓GB5783-M1625EpZn-8.8 BOLT 4011000093 GB5783-M1625EpZn-8.8 Y 1
29 下铰接销 PIN 29250000161 ZL50G.11.6 Y 1
30 套 SLEEVE 29250000171 ZL50G.11-14 Y 2
31 销轴LGB301-95180350G-40Cr WELD PIN 4043000356 Y 2
32 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 7 33 走线胶套 RUBBER SLEEVE 29250001351 Y 4 34 销轴LGB301-110132250G-40Cr WELD PIN 4043000214 Y 1 35 螺栓GB16674-M1025EpZn-8.8 BOLT 4011000474 GB16674-M1025EpZn-8.8 Y 6 -4011001299 36 螺栓GB16674-M1230EpZn-8.8 BOLT 4011000479 GB16674-M1230EpZn-8.8 Y 6 37 螺栓GB16674-M1225EpZn-8.8 BOLT 4011000560 GB16674-M1225EpZn-8.8 Y 6 38 垫圈LGB001-12 WASHER 4040000001 LGB001-12 Y 2 39 焊接销轴 PIN 29250008121 Y 2 40 垫片LGB303-50901 SHIM 4043000032 LGB303-50901 Y 4 41 前转向销润滑油管 LUBRICATING PIPE 29250007871 Y 2 42 右灯架 LAMP BRACKET 29250000213 ZL50G.12.4.1 Y 1 43 右前挡泥瓦 FRONT FENDER 29250000591 N 1 44 垫片LGB303-951601 SHIM 4043000040 ZL50G.11-20 Y 8 45 垫片LGB303-951602 SHIM 4043000041 ZL50G.11-20 Y 8 46 螺栓GB5783-M1630EpZn-8.8 BOLT 4011000094 GB5783-M1630EpZn-8.8 Y 5 47 垫片LGB303-1101801 SHIM 4043000043 LGB303-1101801 Y 4 48 左前挡泥瓦 FRONT FENDER 29250000601 N 1 49 左灯架 LAMP BRACKET 29250000243 ZL50G.12.3.1 Y 1 50 通油螺栓 BOLT 29250000291 Y 2 51 垫片 SHIM 29250000301 Y 4 52 管夹 CLAMP 29250000311 Y 2 53 螺钉GB818-M610EpZn-4.8 SCREW 4014000024 Y 4
54 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 4
55 桥垫板 PLATE 29250008571 N 2
56 销轴LGB301-95165350G-40Cr WELD PIN 4043000213 Y 2
