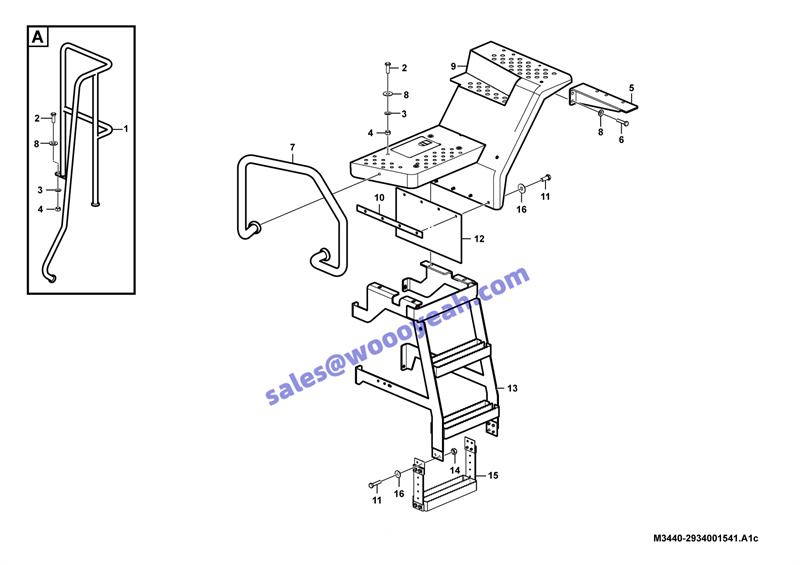

M3440-2934001541.A1c:左台架总成-91 Platform assembiy

1 左护栏 HAND RAIL 29340013421 Y 1
2 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 7
3 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 7
4 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 7
5 左支架 BRACKET 29340013721 Y 1
6 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 12
7 左前扶手 HAND RAIL 29340015291 Y 1
8 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 19
9 左台架 PLATFORM 29340015501 Y 1
10 压板 ANCHOR PLATE 29340017781 Y 1
11 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 8
12 橡胶板 MUDFLAP 29340000651 Y 1
13 左梯 LADDER 29340015491 Y 1
14 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 4
15 软梯 FOOT STEP 29340000571 Y 1
16 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 8
