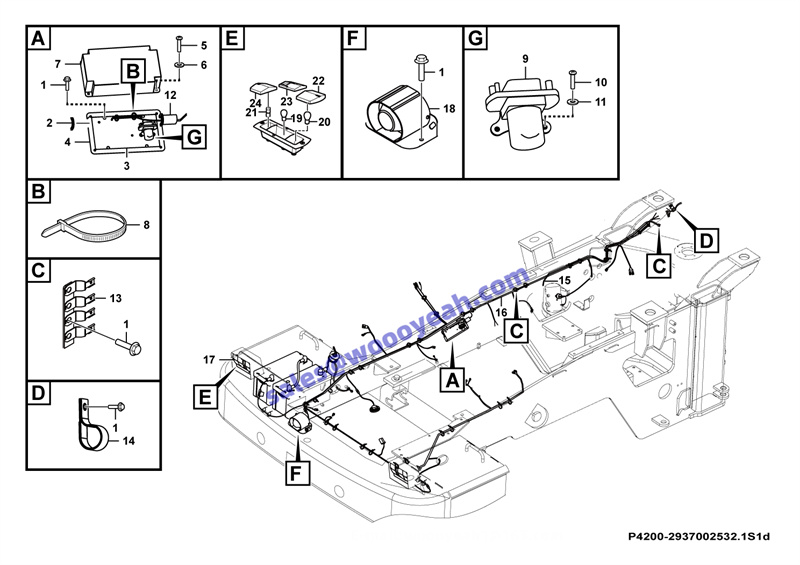

P4200-2937002532.1S1d:后车架电气总成-109 Rear frame electric assembly

1 螺栓GB16674-M816EpZn-8.8 BOLT 4011000461 GB16674-M816EpZn-8.8 Y 3
2 橡胶盖 RUBBER COVER 29370017381 Y 1
3 继电器固定板 BRACKET 29370016111 Y 1
4 CR板 RUBBER PLATE 29370017341 Y 1
5 螺钉GB818-M610EpZn-4.8 SCREW 4014000024 Y 4 6 垫圈GB97.1-6EpZn-300HV WASHER 4015000207 Y 6 7 继电器保护盒 COVER 29370015301 Y 1 8 扎丝LG13-ZS4250 CABLE TIE 4190000020 LG13-ZS4250 Y 40 9 接触器JCC100/1C24·48 RELAY 4130000962 Y 1 10 螺钉GB818-M410EpZn-4.8 SCREW 4014000061 GB818-M4*10EpZn-4.8 Y 2
11 垫圈GB97.1-4EpZn-300HV WASHER 4015000135 GB97.1-4EpZn-300HV Y 2
12 走线胶套 RUBBER SLEEVE 29370017371 Y 1
13 插件支架 BRACKET 29370022381 Y 1
14 管夹Φ25 CLAMP 29370018841 Y 1
15 后车架变速操纵线束 WIRING HARNESS 29370025571 Y 1
16 后车架线束 Cable harness 29370021044 Y 1
17 后尾灯LRHD-24V TAIL LIGHT 4130001134 Y 2
18 倒车蜂鸣器KSHM-12F4 BUZZER 4130000121 Y 1
19 灯泡PHILIPS 13499(24V 21W/5W) BULB 4130000915 Y 1
20 灯泡PHILIPS 13498(24V 21W) BULB 4130000618 Y 1
21 灯泡PHILIPS 13814(24V 10W) BULB 4130000916 Y 1
22 琥珀色灯罩 LAMP SHROUD 4130001132001 N 1
23 红色灯罩 LAMP SHROUD 4130001132002 N 1
24 白色灯罩 LAMP SHROUD 4130001132003 N 1
