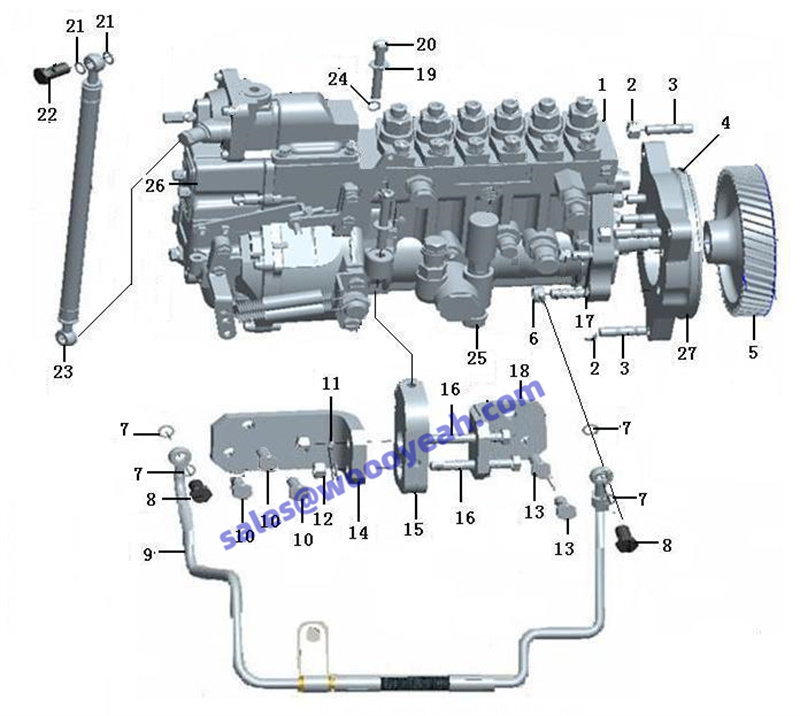

A11-4110001015:喷油泵总成GRD10080043-4 fuel pump assembly

1 喷油泵总成612601080575 INJECTION PUMP 4110001015041 612601080575 Y 1
2 2型全金属六角锁紧螺母90003888452 NUT 4110000591035 90003888452 Y 7
3 双头螺柱90003813532 STUD 4110000924141 Y 3
4 喷油泵法兰612600082057 FLANGE 4110001015042 612600082057 Y 1
5 喷油泵齿轮612600082058 GEAR 4110001015046 612600082058 Y 1
6 2型全金属六角锁紧螺母90003888452 NUT 4110000591035 90003888452 Y 1
7 密封垫圈612600050042 WASHER 4110000846102 612600050042 Y 4
8 空心螺栓90003962612 EYE BOLT 4110000924142 Y 2
9 润滑油进油管总成612600082416 PIPE 4110000924149 N 1
-4110000924143
10 六角法兰面承面带齿螺栓90011430012 SCREW 4110000924144 Y 3
11 弹簧垫圈90003931122 SPRING WASHER 4110000924080 Y 2
12 1型六角螺母90003871305 NUT 4110000924145 Y 2
13 六角法兰面承面带齿螺栓90011430008 SCREW 4110000924061 Y 2
14 喷油泵支架612600082141 BRACKET 4110001015043 612600082141 Y 1
15 喷油泵托架612600082094 BRACKET 4110001015045 612600082094 Y 1
16 六角法兰面承面带齿螺栓9001430034 SCREW 4110000924146 N 2
17 平垫圈90003930271 WASHER 4110000924137 Y 4
18 喷油泵支架612600082142 BRACKET 4110001015044 612600082142 Y 1
19 平垫圈90003930261 WASHER 4110000924147 Y 2
20 内六角圆柱头螺钉612600082135 SCREW 4110000924148 Y 2
21 密封垫圈612600080246 SEALING RING 4110000556132 Y 2
22 空心螺栓612639000047 EYE BOLT 4110000924150 Y 1
23 冒烟限制器空气管总成61560080159 TUBE 4110000924038 61560080159 Y 1
24 自锁垫圈188250083 WASHER 4110000556253 Y 2
25 输油泵612600082504 FUEL PUMP 4110000924044 Y 1
26 调速器612600082505 FUEL REGULATOR 4110000924151 N 1
-4110001015041
27 密封圈612600080400 GASKET 4110000924023 612600080400 Y 1
