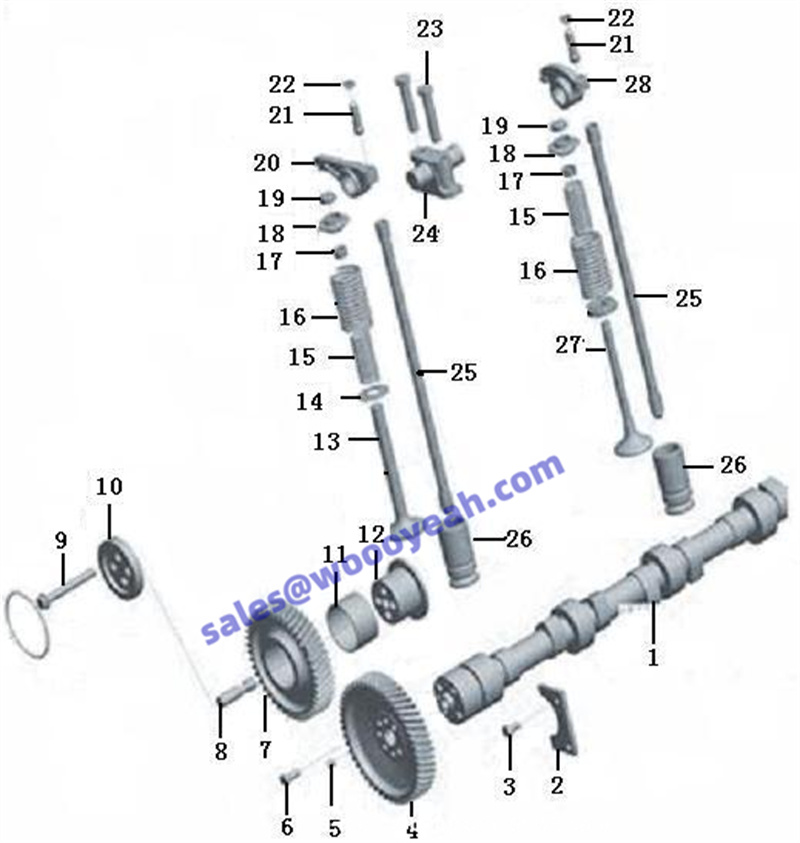

A28-4110000924:配气机构GR615050033-18 valve drive device

1 凸轮轴61500050096 CAMSHAFT 4110000924097 N 1
-4110000556199
2 凸轮轴止推片614050133 THRUST WASHER 4110000556198 Y 1
3 六角头螺栓90003802399 SCREW 4110000924098 Y 2
4 凸轮轴正时齿轮614050053 GEAR 4110000556197 Y 1
5 圆柱销90003901409 PIN 4110001015122 Y 1
6 六角头螺栓612600050145S SCREW 4110000556116 Y 4
7 中间齿轮61560050052 GEAR 4110000924099 N 1
-4110000556245
8 轴61560050058 SHAFT 4110000556248 Y 1
9 六角头螺栓61560050059S SCREW 4110000556120 Y 4
10 垫片61560050045 WASHER 4110000556033 Y 1
11 衬套61560050051 BEARING BUSHING 4110000924100 N 1
12 中间齿轮轴61560050044 SHAFT 4110000556244 Y 1
13 进气门612600050073 INLET VALVE 4110000556089 Y 6
14 进气门弹簧下座614050017 SPRING SEAT 4110000556090 Y 6
15 气门内弹簧61500050001 VALVE SPRING 4110000556169 Y 12
16 气门外弹簧61500050002 VALVE SPRING 4110000556173 Y 12
17 气门锁夹61500050025 COLLET 4110000556170 Y 24
18 气门弹簧上座61500050109 SPRING SEAT 4110000556163 Y 12
19 气门帽61500050105 VALVE CAP 4110000556168 Y 12
20 进气门摇臂614050048 ROCKER ARM 4110000113004 N 6
21 气门间隙调整螺钉614050010 SCREW 4110000556166 Y 12
22 气门间隙调整螺母2130050065 NUT 4110000556167 Y 12
23 六角头螺栓90003802655 SCREW 4110000924101 Y 12
24 气门摇臂座614050119 SEAT 4110000113006 Y 6
25 气门推杆总成612600050210 PUSH ROD 4110000924102 N 12
26 气门挺柱61500050032 TAPPET 4110000556171 Y 12
27 排气门612600050025 EXHAUST VALVE 4110000556145 Y 6
28 排气门摇臂614050049 ROCKER ARM 4110000113005 N 6
