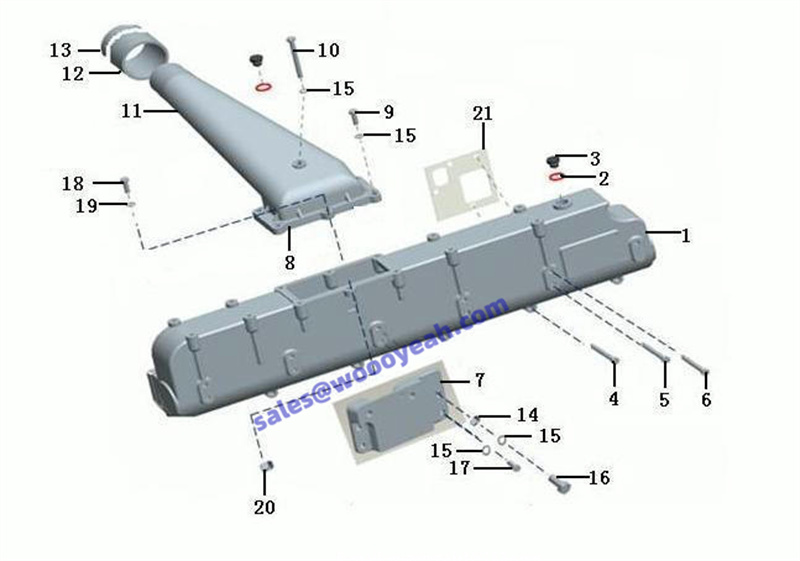

A47-4110000924:进气管总成GR615111429-34 air inlet pipe assembly

1 进气管612600113697 PIPE 4110001015032 612600113697 Y 1
2 密封垫圈90014400010 GASKET 4110000924158 Y 2
3 六角头螺塞90003960005 PLUG 4110000924159 Y 2
4 六角法兰面螺栓612600114858 SCREW 4110000924160 Y 6
5 六角法兰面螺栓612600114468 SCREW 4110000924161 Y 2
6 六角法兰面螺栓612600114467 SCREW 4110000924162 Y 4
7 支架板612600082120 BRACKET 4110001015050 612600082120 Y 1
8 垫片615P60110007 WASHER 4110000113016 Y 1
9 六角头螺栓90003802432 SCREW 4110000924163 Y 4
10 内六角圆柱头螺钉01152814 SCREW 4110000924164 Y 4
11 进气弯管612600110912 TUBE 4110000556092 Y 1
12 冷却液连接管612600112318 HOSE 4110000556204 Y 1
13 软管卡箍90003989312 CLAMP 4110000924165 Y 2
14 调整垫圈609E11036 SHIM 4110000924166 N 2
15 波形弹性垫圈90003932023 SPRING WASHER 4110000591033 90003932023 Y 10
16 六角头螺栓90003802401 SCREW 4110000924167 Y 2
17 六角头螺栓90003802415 SCREW 4110000924153 Y 2
18 六角头螺栓90003802442 SCREW 4110000924168 Y 1
19 弹簧垫圈 90003931102 SPRING WASHER 4110000924169 Y 1
20 1型六角螺母90003871252 NUT 4110000924170 Y 1
21 进气管垫片61500110024 RUBBER WASHER 4110000556087 Y 6
-4110004228004
