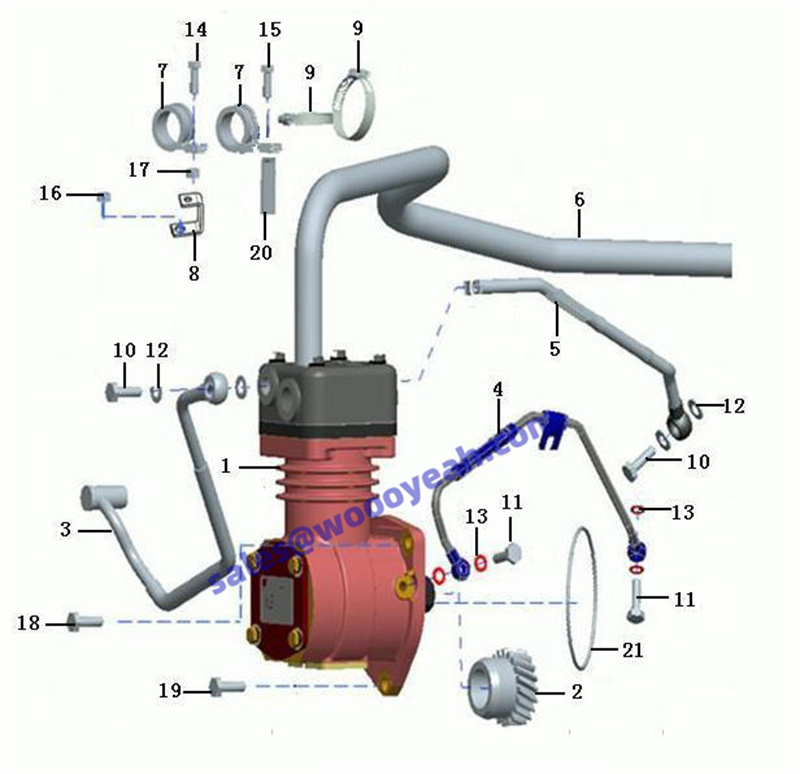

A53-4110000924:单缸空气压缩机GR615130316-39 Air compussor assembly

1 水冷单缸空压机总成612600130496 AIR COMPRESSOR 4110001015033 612600130496 N 1
-4110001015128
2 空压机齿轮612600130309 GEAR 4110000924182 Y 1
3 空压机回水管612600130533 TUBE 4110001015036 612600130533 Y 1
4 空压机润滑油管612600130326 TUBE 4110001015039 612600130326 Y 1
5 空压机进水管612600130500 TUBE 4110001015035 612600130500 Y 1
6 气路连接胶管612600130539 HOSE 4110001015037 612600130539 Y 1
7 单管夹子总成612600111644 CLAMP 4110000556027 Y 2
8 支架板612600012884 BRACKET 4110001015038 612600012884 Y 1
9 软管卡箍90003989340 CLAMP 4110000924084 Y 2
10 空心螺栓90003962627 EYE BOLT 4110000924183 Y 2
11 空心螺栓612600130333 EYE BOLT 4110000924031 612600130333 Y 2
12 组合密封垫圈 13023361 SEALING RING 4110000054337 Y 5
13 密封垫圈612600080246 SEALING RING 4110000556132 Y 4
14 六角法兰面承面带齿螺栓90011430023 SCREW 4110000924176 Y 1
15 六角法兰面承面带齿螺栓90011430001 SCREW 4110000924179 Y 1
16 2型全金属六角锁紧螺母90003888453 NUT 4110000591036 90003888453 Y 2
17 六角法兰面承面带齿螺母612600061719 NUT 4110000924106 Y 1
18 六角法兰面承面带齿螺栓90011430032 SCREW 4110000924184 Y 2
19 六角法兰面承面带齿螺栓90011430017 SCREW 4110000924185 Y 1
20 垫块612600110809 BLOCK 4110000592002 Y 1
21 密封圈30800010003 SEALING RING 4110000924003 30800010003 Y 1
