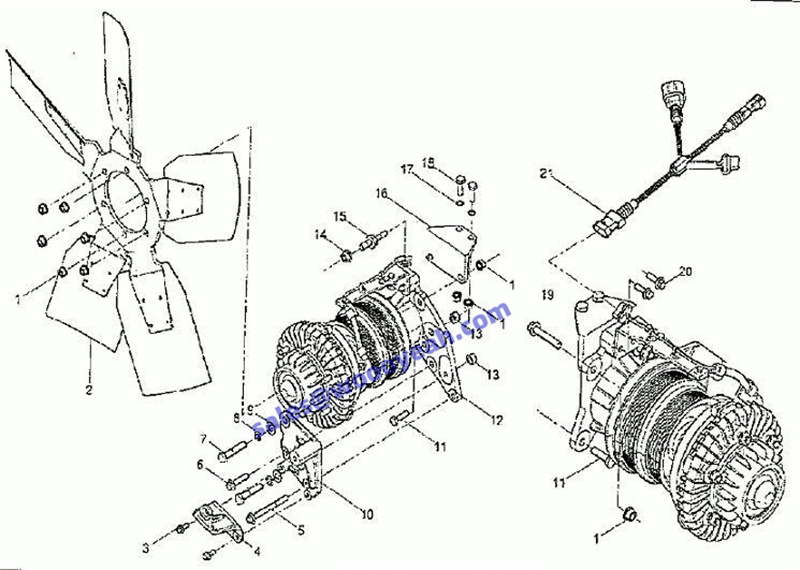

A57-4110000924:风扇托架总成GR615100082-42 fan housing

1 六角法兰面承面带齿螺母612600061720 NUT 4110000924118 Y 9
2 钢质吹风风扇612600060766 FAN 4110000556055 Y 1
3 六角法兰面承面带齿螺栓90011430016S SCREW 4110001014005 Y 2
4 固定板612600090442 BRACKET 4110000113010 Y 1
5 六角法兰面承面带齿螺栓612600061713 SCREW 4110000924124 Y 1
6 六角法兰面承面带齿螺栓90011430036 SCREW 4110000924129 Y 1
7 六角头螺栓90003802655 SCREW 4110000924101 Y 2
8 弹簧垫圈90003931142 SPRING WASHER 4110000924114 Y 2
9 平垫圈90014040009 PLAIN WASHER 4110001016009 Y 2
10 发电机支架612600090680 BRACKET 4110001015027 612600090680 Y 1
11 六角螺栓 90011270008 SCREW 4110001016010 Y 2
12 电磁风扇离合器612600100220 FAN CLUTCH 4110000924191 Y 1
13 1型六角螺母90012210004 NUT 4110000924115 Y 2
14 六角法兰面承面带齿螺母612600061721 NUT 4110000924123 Y 1
15 复合密封垫圈612600080688 WASHER 4110000924025 612600080688 Y 1
16 支架板615G00100011A BRACKET 4110000556240 Y 1
17 波形弹性垫圈90003932024 SPRING WASHER 4110000025012 Y 2
18 六角头螺栓90003802527 SCREW 4110000924117 Y 2
19 六角法兰面承面带齿螺栓90011430025 SCREW 4110000924119 Y 1
20 六角头螺栓90011430001 SCREW 4110000924175 Y 2
21 电磁离合器线束612600061657 WIRING HARNESS 4110000924043 Y 1
