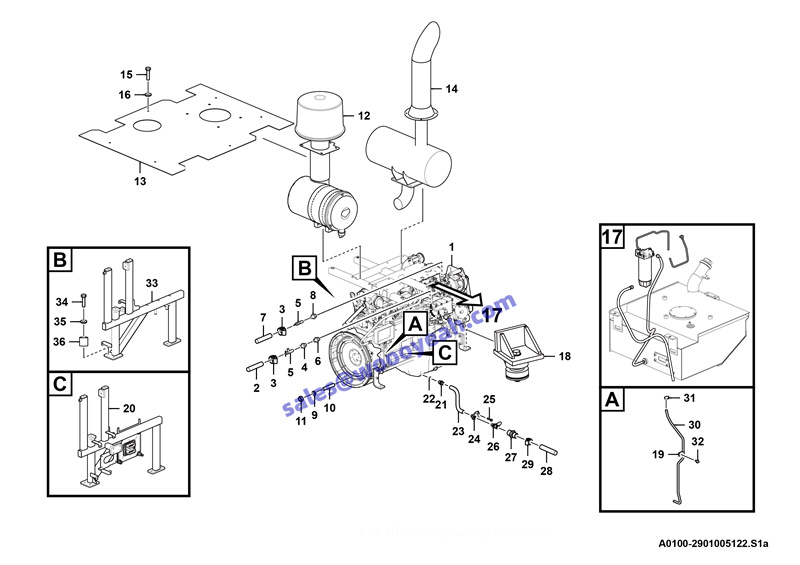

A0100-2901005122.S1a:发动机系统-1 Engine system

1 发动机 ENGINE 11219862 17424591 Y 1
2 暖风水管 HOSE 29010027211 Y 1
3 环箍QC390-D26 CLAMP 4017000024 Y 4
4 过渡接头 NIPPLE 29010031381 Y 1
5 暖风机水阀LG12-NFJSF VALVE 4120000067 LG12-NFJSF Y 2
6 直接头 NIPPLE 29010040741 Y 1
7 暖风水管 HOSE 29010027221 Y 1
8 接头 NIPPLE 29010038161 Y 1
9 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn Y 8
10 双头螺柱 STUD 29010023401 Y 8
11 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 8
12 进气系统 INTAKE PIPE ASSEMBLY 29010051651 N 1
13 上盖板 COVER PLATE 29010051471 Y 1
14 排气系统 EXHAUST SYSTEM 29010051681 N 1
15 螺栓GB5783-M1020flZnyc-8.8-480 SCREW 4011001238 Y 12 16 垫圈GB96.1-10flZnyc-300HV-480 WASHER 4015000426 Y 12 17 燃油供油系统 FUEL CONTROL UNIT 29010051671 N 1 18 发动机安装 Assembly compound 29010051661 N 1 19 管夹 CLAMP 26370001951 Y 1 20 左支撑 BRACKET 29010051531 Y 1 21 直接头LGB155-01822 NIPPLE 4041000822 Y 1 22 O形圈GB3452.1-19.02.65G O-RING 4030000280 GB3452.1-192.65G Y 1 23 软管LGB166-006050 HOSE ASSEMBLY 4041002422 Y 1 24 过渡接头 NIPPLE 29010055601 Y 1 25 螺栓GB5783-M820flZnyc-8.8-480 SCREW 4011001247 Y 2
26 排油阀 VALVE 11210523 14521728-A N 1
-11223005
27 接头 NIPPLE 11219883 16027695 Y 1
28 软管 HOSE 11219884 11027418 Y 1
29 管夹 CLAMP 11219885 943474 Y 1
30 胶管 HOSE 29010041971 Y 1
31 喉箍JB8870-d32 CLAMP 4017000011 JB8870-d32 Y 1
32 螺栓GB16674-M1016EpZn-8.8 BOLT 4011000488 GB16674-M1016EpZn-8.8 Y 1
33 右支撑 BRACKET 29010051631 Y 1
34 螺栓GB5782-M12*60flZnyc-10.9-480 SCREW 4011001327 Y 8
35 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428 Y 8
36 隔套 SPACER BUSHING 29030011391 Y 8
