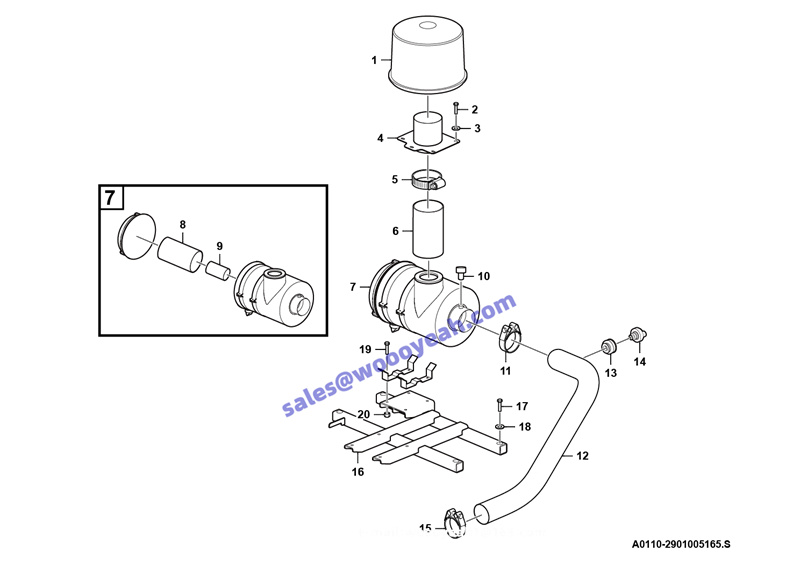

A0110-2901005165.S:进气系统-2 Air inlet system

1 预滤器H002438 PRIMARY FILTER 4110000764 Y 1
2 螺栓GB5783-M1020flZnyc-8.8-480 SCREW 4011001238 Y 5 3 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433 Y 9 4 进气管组件 INLET MANIFOLD 29010047411 Y 1 5 喉箍JB8870-d170 CLAMP 4017000003 JB8870-d170 Y 2 6 空气连接胶管 HOSE 29010051521 Y 1 7 空滤器G138453 AIR CLEANER 4110000763 Y 1 8 空滤器滤芯P812363 AIR FILTER INSERT 4110000763001 Y 1 9 空滤内滤芯P838813 AIR FILTER INSERT 4110000763002 Y 1 10 压差指示器X002277 INDICATOR 4110000682 Y 1 11 T型抱箍φ146.1（+2.4-5.6mm） CLAMP 4110000769 Y 1 12 进气胶管 HOSE 29010040111 Y 1 13 接头 CONNECTOR 11210293 14506431 Y 1 14 真空开关 VACUUM SWITCH 11211144 3220565673-A Y 1 -11215748 15 T型抱箍φ105.6（+2.4-5.6mm） CLAMP 4110000906 Y 1 16 支架 BRACKET 29010051441 Y 1 17 螺栓GB5782-M1270flZnyc-8.8-480 SCREW 4011001355 Y 4
18 垫圈GB96.1-12flZnyc-300HV-480 WASHER 4015000427 Y 4
19 螺栓GB5783-M10*25flZnyc-8.8-480 SCREW 4011001248 Y 4
20 螺母GB6170-M10flZnyc-8-480 NUT 4013000370 Y 4
