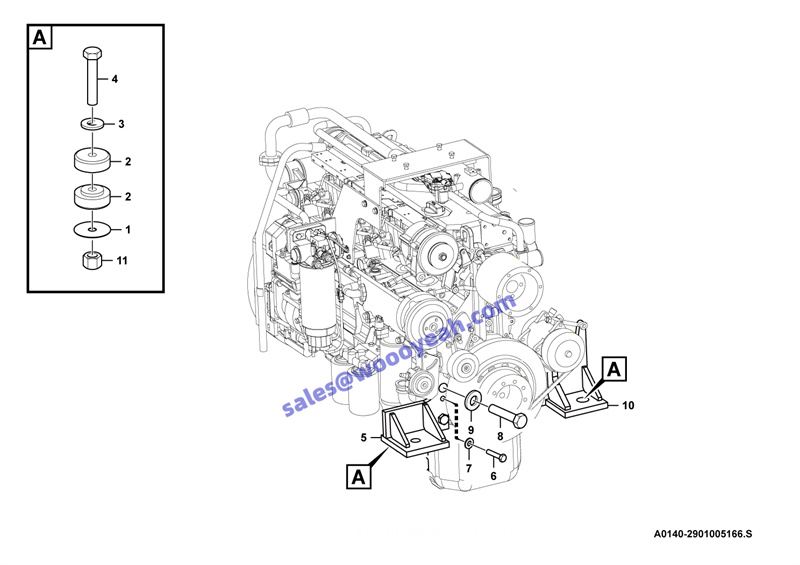

A0140-2901005166.S:发动机安装-5 Engine mounting

1 垫圈124 WASHER 29010024431 Y 2
2 减震器CBB120 ABSORBER 4110001528 Y 4
3 垫圈GB97.1-20flZnyc-300HV-480 WASHER 4015000434 Y 2
4 螺栓GB5785-M201.5130flZnyc-8.8-480 SCREW 4011001310 Y 2
5 发动机左支撑 ENGINE BRACKET 29010031611 Y 1
6 螺栓GB5783-M1235flZnyc-10.9-480 SCREW 4011001205 GB5783-M1235flZnyc-10.9-480 Y 2
7 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428 Y 2
8 螺栓GB5783-M1640flZnyc-10.9-480 SCREW 4011001202 GB5783-M1640flZnyc-10.9-480 Y 4
9 垫圈GB97.1-16flZnyc-300HV-480 WASHER 4015000436 Y 4
10 发动机右支撑 ENGINE BRACKET 29010040361 Y 1
11 螺母GB889.2-M20*1.5flZnyc-8-480 NUT 4013000379 Y 2
