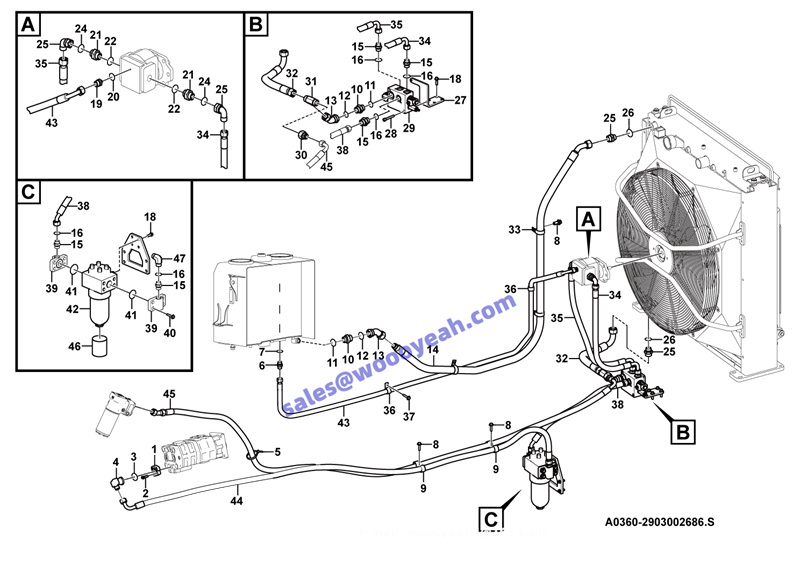

A0360-2903002686.S:液压马达管路总成-12 fan motor hydraulic system

1 分体法兰LGB117-310490 FLANGE HALF 4041000043 Y 1
2 螺栓GB16674.1-M1030flZnyc-8.8-480 SCREW 4011001300 Y 4 3 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 1 4 法兰盘面接头 NIPPLE 29030023101 Y 1 5 扎丝LG13-ZS4250 CABLE TIE 4190000020 LG13-ZS4250 Y 3 6 直接头LGB120-02222 NIPPLE 4041000143 Y 1 7 O形圈LGB168-11924 O-RING 4041000771 Y 1 8 螺栓GB16674.1-M1020flZnyc-8.8-480 SCREW 4011001294 Y 5
9 管夹 CLAMP 26370001951 Y 4
10 直接头LGB120-03633 NIPPLE 4041000577 Y 2
11 O形圈LGB168-02931 O-RING 4041001446 Y 2
12 O形圈GB3452.1-25.81.80G O-RING 4030000504 Y 2 13 组合接头LGB143-13625 ELBOW NIPPLE 4041001485 Y 2 14 软管LGB166-414288 HOSE 4041001811 Y 1 15 直接头LGB120-02628 NIPPLE 4041000796 Y 5 16 O形圈LGB168-12331 O-RING 4041000779 Y 5 17 固定板 BRACKET 29030021611 Y 1 18 螺栓GB16674.1-M1025flZnyc-8.8-480 SCREW 4011001299 Y 12
19 直接头UNF7 /16-M22 NIPPLE 29030014251 Y 1
20 O形圈8.921.83 O-RING 4120003299 Y 1 21 直通接头 NIPPLE 29120012681 Y 2 22 O形圈GB3452.1-28.02.65G O-RING 4030000090 GB3452.1-282.65G Y 2 23 组合接头LGB143-02616 NIPPLE 4041001006 Y 2 24 O形圈GB3452.1-15.01.80G O-RING 4030000501 Y 2
25 直接头LGB155-03036 NIPPLE 4041001486 Y 2
26 O形圈GB3452.1-30.02.65G O-RING 4030000211 GB3452.1-302.65G Y 2
27 固定板 PLATE 29030022731 Y 1
28 螺钉GB70.1-M1070flZnyc-8.8-480 SCREW 4014000526 Y 2 29 温控风冷控制阀组 VALVE 4120005302 Y 1 30 变径接头RED2818LCF NIPPLE 29030022721 Y 1 31 三通接头ET28LOMDCF THREE-WAY NIPPLE 29030022971 Y 1 32 软管LGB165-014062 HOSE ASSEMBLY 4041002242 Y 1 33 管夹 CLAMP 26370001961 Y 2 34 软管LGB128-410080 HOSE ASSEMBLY 4041002328 Y 1 35 软管LGB128-410085 HOSE 4041001801 Y 1 36 管夹Φ25 CLAMP 29370018841 Y 2 37 螺栓GB16674.1-M816flZnyc-8.8-480 SCREW 4011001297 Y 2
38 软管LGB129-410071 HOSE ASSEMBLY 4041002402 Y 1
39 过渡块 BLOCK 29030022741 Y 2
40 螺栓GB16674.1-M1640flZnyc-8.8-480 SCREW 4011001274 Y 8 41 O形圈GB3452.1-47.53.55G O-RING 4030000130 GB3452.1-47.53.55G Y 2 42 压力油过滤器PLF-H24010F OIL FILTER 4120004418 Y 1
43 软管LGB165-406290 HOSE ASSEMBLY 4041002326 Y 1
44 软管LGB128-410220 HOSE 4041002097 Y 1
45 软管LGB165-410337 HOSE 4041002095 Y 1
46 压力油过滤器滤芯LH0240D010BN/HC FILTER INSERT 4120004418001 Y 1
47 过渡接头EW18LOMDA3C NIPPLE 4120000919 Y 1
