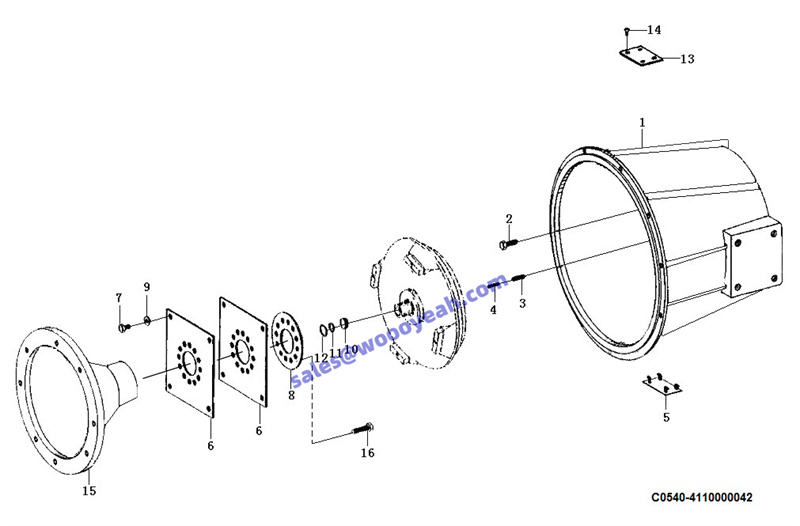

C0540-4110000042:发动机连接总成-15 flange plate(450201)

1 连接壳体4644 330 385 INTERMEDIATE HOUSING 4110000042107 Y 1
2 六角螺钉(M10*50)0636010460 SCREW 7200001454 P4WG200-025 Y 14
3 张紧销钉0631 329 100 PIN 4110000042124 Y 2
4 张紧销钉0631329072 PIN 7200001456 P4WG200-027 Y 2
5 盖0501.340.197:000 COVER 7200001457 P4WG200-028 Y 1
6 膜片4644330239 DIAPHRAGM 7200001458 P4WG200-029 Y 2
7 六角头螺钉9636 016 221 SCREW 4110000042109 Y 4
8 垫圈4644330228 WASHER 7200001460 P4WG200-031 Y 1
9 垫圈(13)0630001049 WASHER 7200001461 P4WG200-032 Y 4
-4110002230008
10 垫圈4166330123 WASHER 7200001462 P4WG200-033 Y 1
11 O形圈(25×3)0634313260 O-RING 7200001463 P4WG200-034 Y 1
12 卡环(30×1.2)0630502015 LOCK RING 7200001464 P4WG200-035 Y 1
13 盖4644330242 COVER 7200001465 P4WG200-036 Y 1
14 六角螺钉(M10x12)0636015169 SCREW 7200001466 P4WG200-037 Y 4
15 中间环4644 330 222 FLANGE 4110000042125 Y 1
16 螺钉(M12x30)0636900127 SCREW 7200001468 P4WG200-039 Y 12
