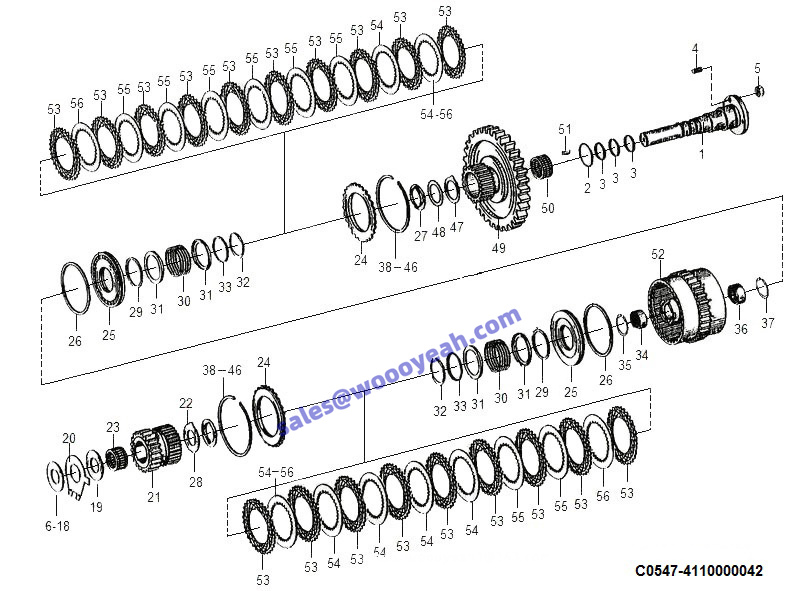

C0547-4110000042:离合器-22 Clutch(450201)

1 轴4644353058 SHAFT 7200001615 P4WG200-186 Y 1
2 O形圈(49*3)0634313536 O-RING 7200001533 P4WG200-104 Y 1
3 活塞环0734401106 PISTON RING 7200001534 P4WG200-105 Y 3
4 螺柱0636610014 STUD 7200001674 P4WG200-245 Y 2
5 六角螺母(M8)0637006018 NUT 7200001675 P4WG200-246 Y 2
6 调整垫圈 0730 003 501-505,157-164 SHIM 4110001742014 N 1
7 调整垫圈s=0.6 0730 003 502 SHIM 4110000042052 Y 1
8 调整垫圈s=0.8 0730 003 503 SHIM 4110000042053 Y 1
9 调整垫圈s=1.0 0730 003 504 SHIM 4110000042054 Y 1
10 调整垫圈s=1.2 0730 003 505 SHIM 4110000042055 Y 1
11 调整垫圈s=1.4 0730 108 157 SHIM 4110000042056 Y 1
12 调整垫圈s=1.6 0730 108 158 SHIM 4110000042057 Y 1
13 调整垫圈s=1.8 0730 108 159 SHIM 4110000042058 Y 1
14 调整垫圈s=2.0 0730 108 160 SHIM 4110000042059 Y 1
15 调整垫圈s=2.2 0730 108 161 SHIM 4110000042060 Y 1
16 调整垫圈s=2.4 0730 108 162 SHIM 4110000042061 Y 1
17 调整垫圈s=2.6 0730 108 163 SHIM 4110000042062 Y 1
18 调整垫圈s=2.8 0730 108 164 SHIM 4110000042063 Y 1
19 止推垫圈0730150759 THRUST WASHER 7200001539 P4WG200-110 Y 1
20 止推垫圈4644303534 THRUST WASHER 7200001623 P4WG200-194 Y 1
21 齿轮 Z=29(HVZ)4644308587 GEAR 7200001624 P4WG200-195 Y 1
22 止推垫圈0730150777 THRUST WASHER 7200001626 P4WG200-197 Y 1
23 滚针轴承0735358069 NEEDLE BEARING 7200001625 P4WG200-196 Y 1
24 端垫4642308185 WASHER 7200001627 P4WG200-198 Y 2
25 活塞4644353062 CYLINDER PISTON 7200001628 P4WG200-199 Y 2
26 贴面密封圈0501.338.224:000 SEALING RING 7200001629 P4WG200-200 Y 2
27 止推垫圈4644351094 THRUST WASHER 7200001549 P4WG200-120 Y 1
28 止推垫圈4642308555 THRUST WASHER 7200001550 P4WG200-121 Y 1
29 密封环0750112140 SEALING RING 7200001551 P4WG200-122 Y 2
30 压力弹簧0732041183 TENSION SPRING 4110000076251 Y 2
31 导向环4642308083 GUIDE RING 7200001553 P4WG200-124 Y 4
32 V形杯AV550630531346 LOCK RING 7200001554 P4WG200-125 Y 2
33 导向环4642308084 GUIDE RING 7200001555 P4WG200-126 Y 2
34 滚针轴承0750115182 NEEDLE BEARING 7200001637 P4WG200-208 Y 1
35 挡圈0730513610 RETAINING RING 7200001557 P4WG200-128 Y 1
36 滚针轴承0635303204 NEEDLE BEARING 7200001639 P4WG200-210 Y 1
37 挡圈0730513611 RETAINING RING 7200001559 P4WG200-130 Y 1
38 挡圈0730513420 A=2.25 RETAINING RING 7200001641 P4WG200-212 Y 2
39 挡圈A= 2.30 0730 513 419 RETAINING RING 4110000042019 Y 2
40 挡圈A= 2.35 0730 513 418 RETAINING RING 4110000042021 Y 2
41 挡圈A= 2.40 0730 513 417 RETAINING RING 4110000042022 Y 2
42 挡圈A= 2.45 0730 513 416 RETAINING RING 4110000042024 Y 2
43 调整垫圈 0730 513 180,416-421,455,456 TRIM WASHER 4110001742016 N 2
44 挡圈A= 2.20 0730 513 421 RETAINING RING 4110000042017 Y 2
45 挡圈A= 2.15 0730 513 455 RETAINING RING 4110000042016 Y 2
46 挡圈A= 2.10 0730 513 456 RETAINING RING 4110000042014 Y 2
47 止推垫圈0730150779 THRUST WASHER 7200001561 P4WG200-132 Y 1
48 垫圈0730109643 WASHER 7200001643 P4WG200-214 Y 1
49 齿轮4644 308 630 GEAR 4110000042012 Y 1
50 滚针轴承贴面密封圈组件0750115109 SEALING RING 7200001646 P4WG200-217 Y 1
-4110002230077
51 滚柱0735.470.272 ROLLER 7200001647 P4WG200-218 Y 12
52 摩擦片支承4644253045 SUPPORT 7200001648 P4WG200-219 Y 1
53 外摩擦片0501332095 FRICTION DISC 7200001649 P4WG200-220 Y 19
54 内摩擦片4642308330 FRICTION DISC 7200001650 P4WG200-221 Y 7
55 内摩擦片4642308332 FRICTION DISC 7200001651 P4WG200-222 Y 10
56 内摩擦片4642308331 FRICTION DISC 7200001652 P4WG200-223 Y 4
