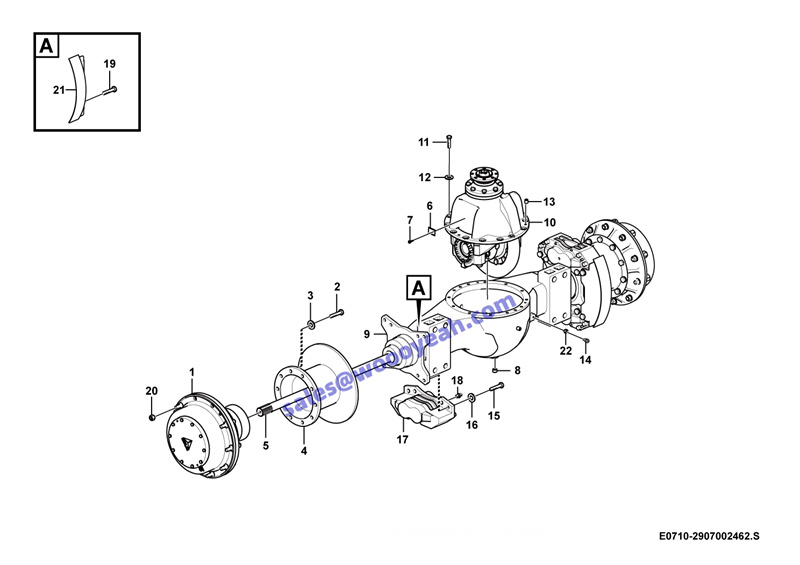

E0710-2907002462.S:A515G前驱动桥总成-37 Front axle assembly

1 轮边减速器 Hub reduction 29070023011 N 2
2 螺栓GB5786-M201.550flZnyc-8.8-480 SCREW 4011001319 Y 20
3 垫圈GB93-20-65Mn SPRING WASHER 4015000030 GB93-20-65Mn Y 20
4 制动盘 Brake disc 29070021581 Y 2
5 半轴 SHAFT HALF 29070012581 Y 2
6 前桥标牌 Name plate 29070019791 N 1
7 铆钉GB827-35-BL2 RIVET 4019000012 GB827-35-BL2 Y 4
8 磁性螺塞 PLUG 29070021441 Y 2
9 桥壳总成 Axle casing 29070023022 Y 1
10 主传动总成 Final drive 29070023332 N 1
-29070023333
11 螺栓GB5786-M161.545flZnyc-8.8-480 SCREW 4011001322 Y 14
12 垫圈 WASHER 29070009511 Y 14
13 销 PIN 29050023122 Y 2
14 透气嘴 Breather cap 29070023071 Y 1
15 螺栓 SCREW 29070021631 Y 12
16 垫圈 WASHER 29070011121 Y 16
17 制动钳 DISC BRAKE 4120002669 Y 4
18 放气嘴 NIPPLE 4120001740 Y 8
19 螺栓GB5785-M201.560flZnyc-10.9-480 Bolt 4011001366 Y 4
20 轮辋螺母M20 NUT 29070021431 Y 20
21 防护板 GUARD PLATE 29070014552 Y 2
22 螺母GB6173-M10*1flZnyc-05-480 Nut 4013000425 Y 1
