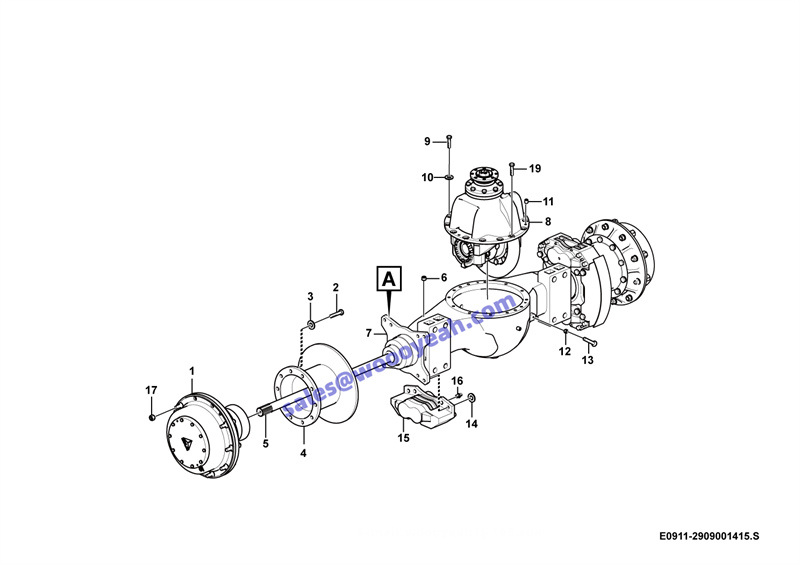

E0911-2909001415.S:A515G后驱动桥总成-44 Rear axle

1 轮边减速器 Hub reduction 29090013331 N 2
2 螺栓GB5786-M201.550flZnyc-8.8-480 SCREW 4011001319 Y 20
3 垫圈GB93-20-65Mn SPRING WASHER 4015000030 GB93-20-65Mn Y 20
4 制动盘 BRAKE DISC 29070001071 ZL50F.9-9 Y 2
5 半轴 SHAFT HALF 29090008481 Y 2
6 磁性螺塞 PLUG 29070021441 Y 2
7 桥壳总成 Axle casing 29090013342 Y 1
8 主传动总成 Final drive 29090013351 Y 1
9 螺栓GB5786-M161.545flZnyc-8.8-480 SCREW 4011001322 Y 12
10 垫圈 WASHER 29070009511 Y 14
11 透气嘴 Breather cap 29070023071 Y 1
12 螺母GB6173-M101flZnyc-05-480 Nut 4013000425 Y 1 13 螺栓 SCREW 29070021631 Y 16 14 垫圈 WASHER 29070011121 Y 16 15 制动钳 DISC BRAKE 4120002669 Y 4 16 放气嘴 NIPPLE 4120001740 Y 8 17 轮辋螺母M20 NUT 29070021431 Y 20 18 螺栓GB5785-M161.5*65flZnyc-10.9-480 SCREW 4011001395 Y 2
19 销 PIN 29050023122 Y 2
