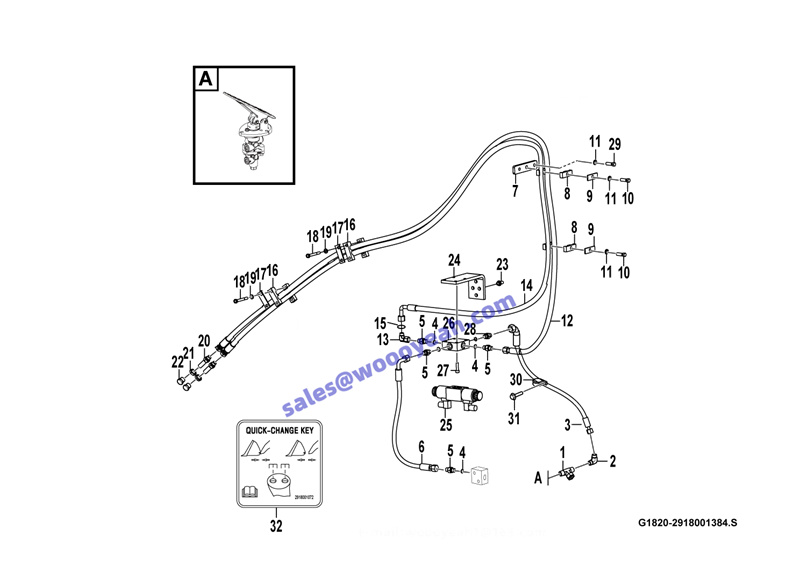

G1820-2918001384.S:快换装置液压系统-58 quick coupler hydraulic system

1 三通接头ET12LOMDCF THREE-WAY NIPPLE 4120002171 Y 1
2 组合接头LGB143-01810 NIPPLE 4041001063 Y 1
3 软管LGB128-005285 HOSE ASSEMBLY 4041002373 Y 1
4 O形圈LGB168-11124 O-RING 4041000767 Y 5
5 直接头LGB120-01614 NIPPLE 4041000604 Y 4
6 软管LGB125-004058 HOSE ASSEMBLY 4041001848 Y 1
7 隔板 PLATE 29180012371 Y 1
8 橡胶板 RUBBER PLATE 29180010621 N 4
9 压板 ANCHOR PLATE 29180010631 Y 2
10 螺栓GB5783-M1040flZnyc-8.8-480 SCREW 4011001280 Y 2 11 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433 Y 4 12 软管LGB127-004285 HOSE ASSEMBLY 4041002419 Y 1 13 组合接头LGB143-01608 NIPPLE 4041001023 Y 1 14 软管LGB128-004295 HOSE 4041002186 Y 1 15 O形圈GB3452.1-8.001.80G O-RING 4030000240 GB3452.1-81.8G Y 3 16 管夹 CLAMP 29180012381 Y 4 17 压板 PLATE 29180012411 Y 2 18 螺栓GB5782-M845flZnyc-8.8-480 SCREW 4011001321 Y 4
19 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 4
20 隔板接头 NIPPLE 29180012401 Y 2
21 螺母GB6173-M161.5flZnyc-05-480 NUT 4013000378 Y 2 22 堵塞LGB142-01604 PLUG 4041000598 Y 2 23 螺栓GB16674.1-M1020flZnyc-8.8-480 SCREW 4011001294 Y 3
24 板 PLATE 29180009381 Y 1
25 电磁阀4WE6E61B/CG24NZ4B08 SOLENOID VALVE 4120000368 4WE6E61B/CG24NZ4B08 Y 1
26 电磁阀座 VALVE SEAT 29180007862 Y 1
27 螺钉GB70.1-M830flZnyc-8.8-480 SCREW 4014000513 Y 4 28 直接头LGB120-01814 NIPPLE 4041000150 Y 1 29 螺栓GB5783-M1020flZnyc-8.8-480 SCREW 4011001238 Y 2
30 管夹 CLAMP 26370001921 N 1
-4041002377
31 螺栓GB16674.1-M8*16flZnyc-8.8-480 SCREW 4011001297 Y 1
32 快换操纵标志 DECAL 29180010721 Y 1
